• Great for loading low clearance equipment such as scissor lifts and warehouse forklifts. •

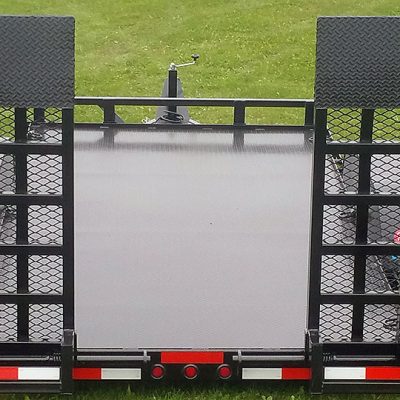

Trailer may be shown with optional equipment.

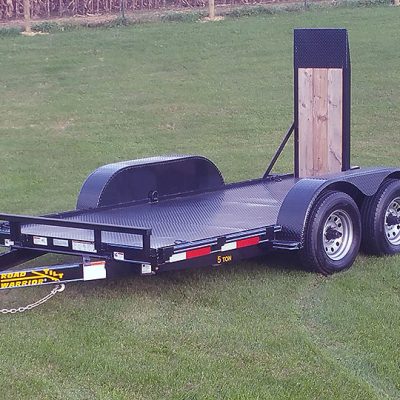

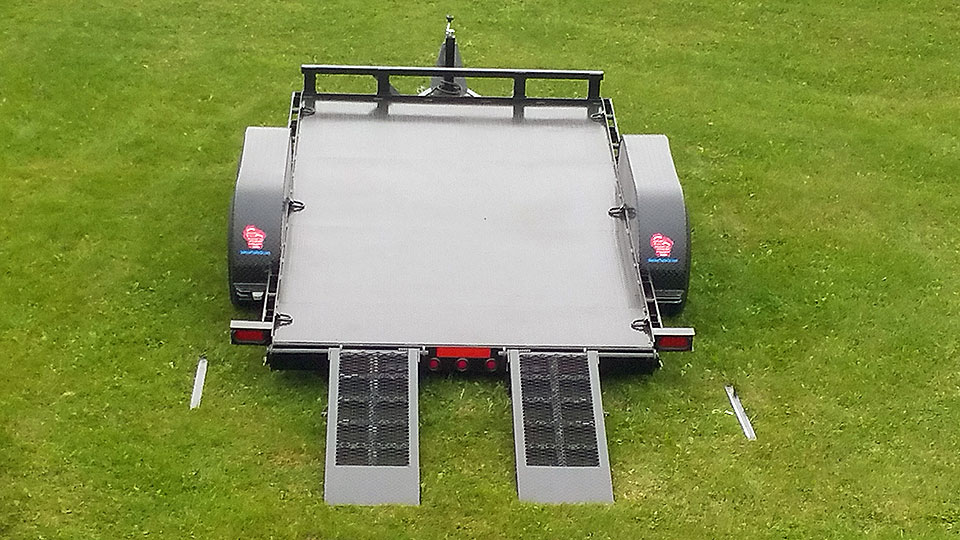

| Specifications – 5 Ton Low Angle Tilt Bed Trailer |
| Weight Rating: 10,000 LBS. GVWR w/evenly distributed load |
| Axle: 2 – 5,200# electric brakes w/ez-lube, safety breakaway w/charger |
| Suspension: 5 leaf double eye springs |
| Tires & Wheels: ST225/75 R15 load range D tires, 6×5.5 bolt pattern silver mod wheels |
| Fenders: 10 3/4″x72″ 14 ga. treadplate teardrop |

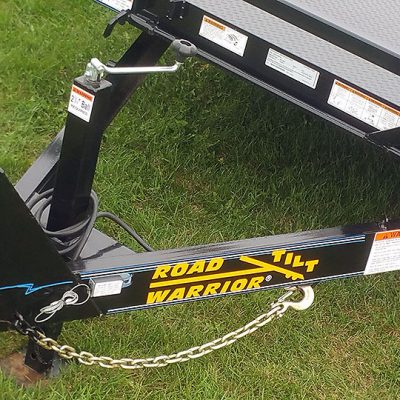

| Hitch: Adjustable 2 5/16″ ball or pintle with H.D. safety chains |
| Jack: 7,000# topwind, drop leg |
| Structural: Special frame, 5″ x 3″ x 1/4″ boxed w/3″ x 2″ x 3/16″, 3″ channel crossmembers (12″centers), 5″ channel tongue |

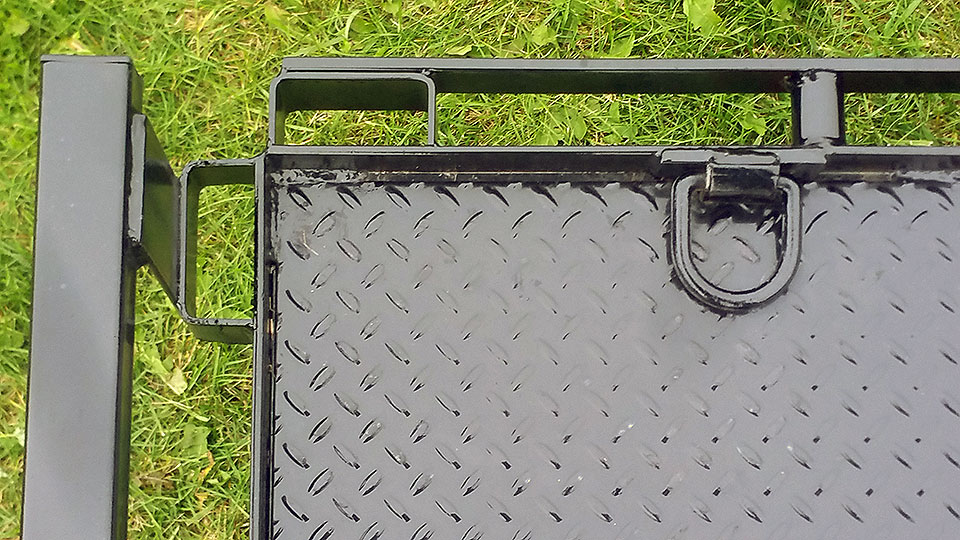

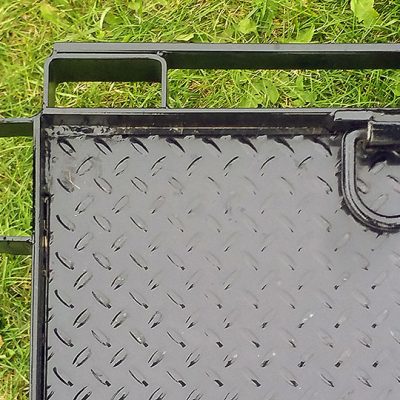

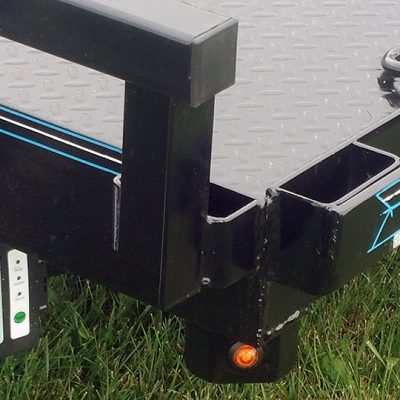

| Tie Downs: Stake pockets and rub rail, 6 d-rings |

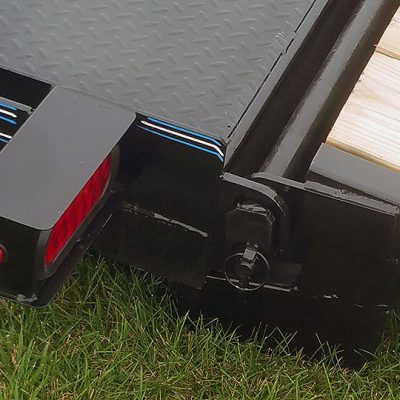

| Tilt: Gravity tilt w/special cam lock bed latch system |

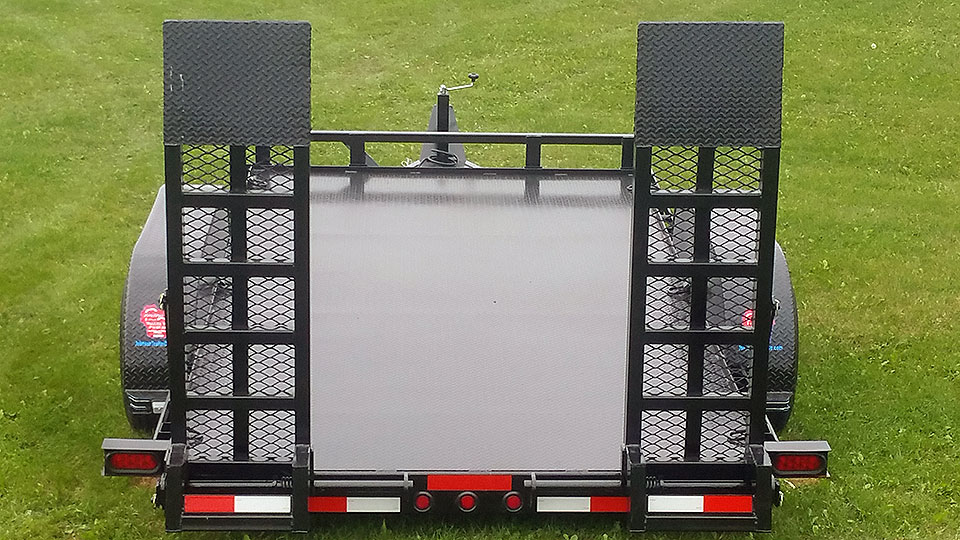

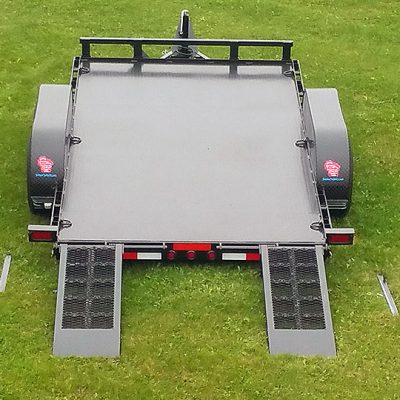

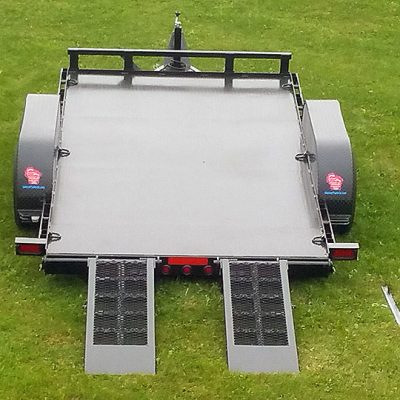

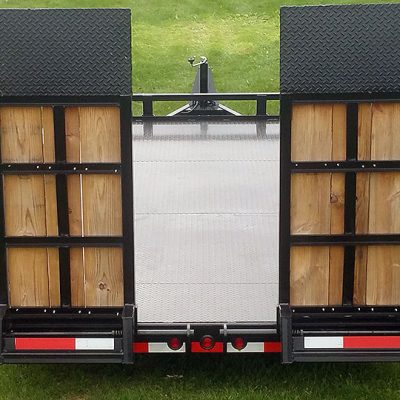

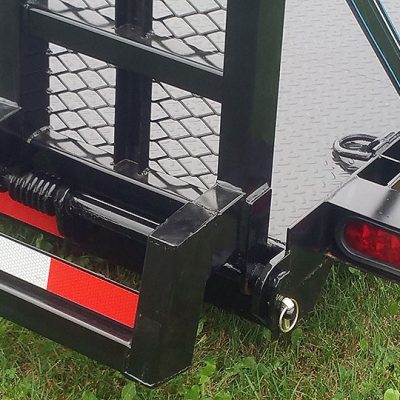

| Ramps: 5′ tall x 18″ wide spring assist w/ramp knees that cantilever under tail of trailer during loading |

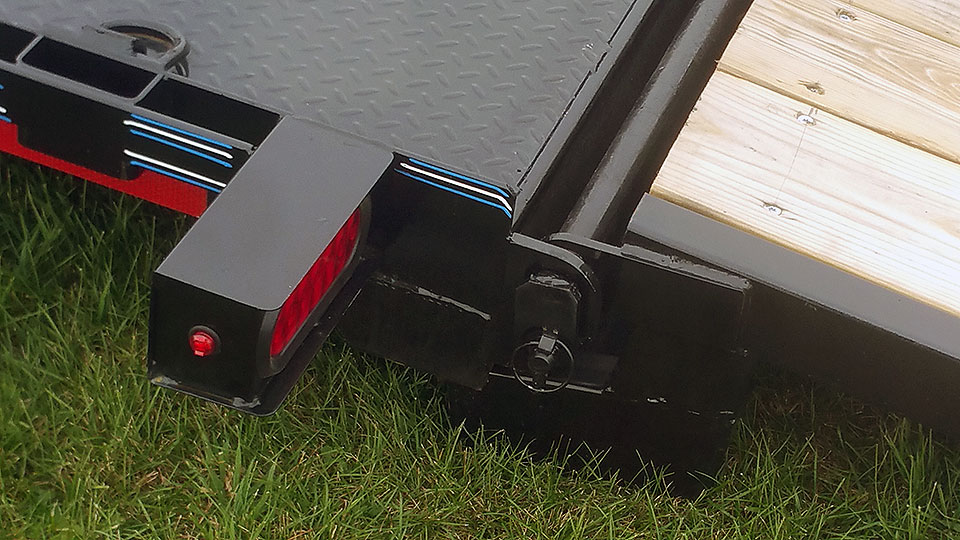

| Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape |
| Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors – please call) |
Bed Size & Prices
• 80″ X 14′: $4,668
Some Options
• Now standard with LED lights
• Spare ST 225/75 R15 LR “D” tire w/silver mod wheel: $170
• Spare silver mod wheel w/o tire: $50
• 2 5/16 ball coupler or pintle hitch: N/C
• Stake pocket D-rings: $26 each for 6 or more. $32 each for less than 6. Click to view stake pocket D-rings
• Third stand up ramp in center: $165

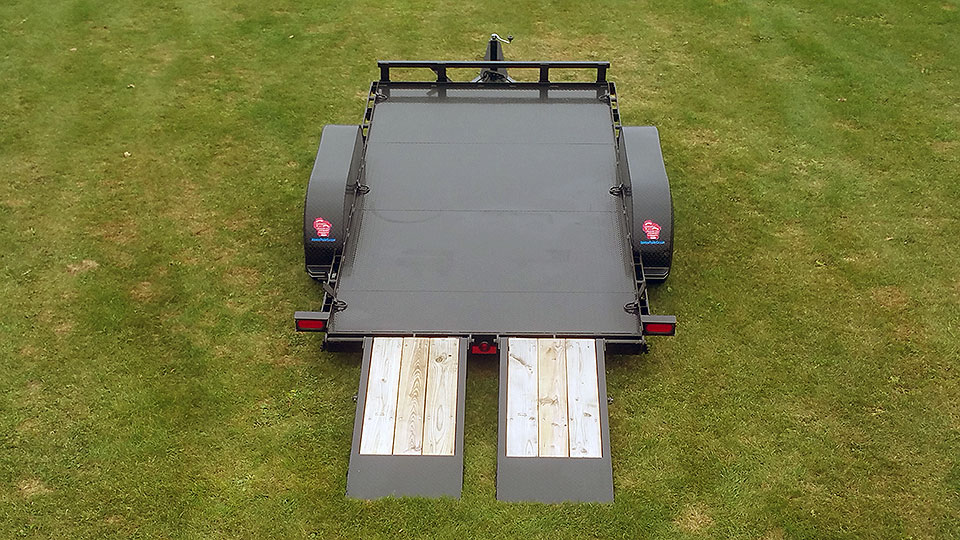

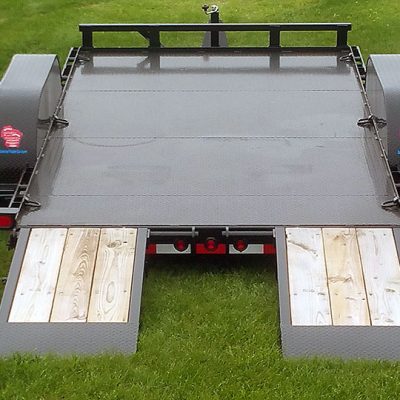

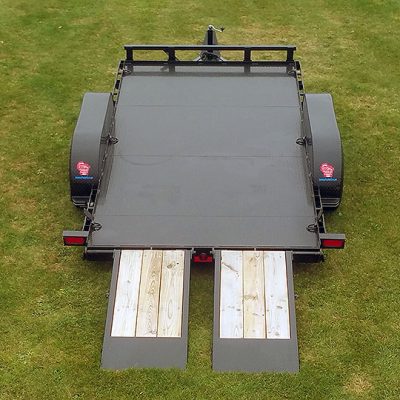

• Pair 26″ wide stand up ramps w/2×8 treated pine inserts (in lieu of standard ramps): $215
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
