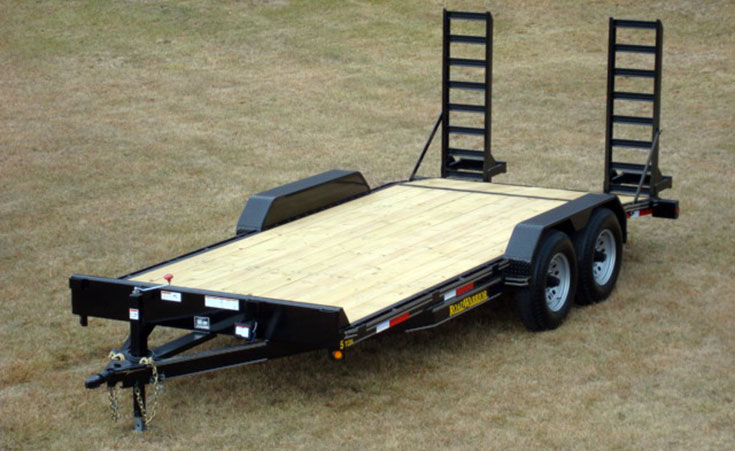

| Specifications - 5 Ton Equipment |
| Weight Rating: 10,000 LBS. GVWR w/evenly distributed load |
| Axles: 2 - 5,200# electric brakes, w/ez-lube, safety breakaway w/charger |
| Suspension: 5 leaf slipper springs |
| Tires & Wheels: ST235/80 D16 load range E tires,6 x 5 1/2 bolt pattern silver mod wheels |
| Fenders: 9"x72" 14 ga. treadplate teardrop |
| Hitch: 2 5/16" Bulldog with H.D. safety chains |
| Jack: 7,000# topwind, dropleg |
| Structural: 5" channel frame & tongue, 3" channel crossmembers (16" centers)
|
| Tie Downs: 14 stake pockets, 5" solid bump bar
|
| Ramps: Spring assist stand up knee ramps, 5' tall x 18" wide |
| Electrical: All required lighting, sealed beam lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape |
| Floor: 2 X 8 treated yellow pine decking |
| Paint: Phenolic epxoy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call. |
Note: Trailer length includes dove tail. (Example: 18' trailer with dove tail has an 18' bed including the dove tail.)
Bed Size & Prices
Prices Current as of June, 2013
• 83" X 16' w/32" dove & knee ramps: $3,265
• 83" X 18' w/32" dove & knee ramps: $3,365
• 83" X 20' w/32" dove & knee ramps: $3,465
• 83" X 22' w/32" dove & knee ramps: $3,565
Some Options
• Spare ST 235/80 D16 LR "E" tire w/silver mod wheel: $150
• Spare silver mod wheel w/o tire: $57
• 2 5/16 ball coupler or pintle hitch: N/C
• Rubrail w/pipespools: $75
• 5' slide in ramps w/storage pockets in rear: N/C
• 10,000 # drop leg jack (in lieu of standard): $75
• Gooseneck package: $950
• Side rails w/3" pipe top rails: $200
• Side rails w/3" square tubing top rails: $250
• 12,000# GVWR: Click to view 6 ton equipment trailer
• 14,000# GVWR: Click to view 7 ton equipment trailer
• 102" wide package w/drive over fenders: Click to view 102" package
• 10,000# GVWR Tilt bed: Click to view 5 ton tilt bed trailer
• 14,000# GVWR Tilt bed: Click to view 7 ton tilt bed trailer
• Aluminum tongue mounted toolbox: $199 Click to view aluminum tongue box
• Poly tongue mounted toolbox: $99 Click to view poly tongue box
• LED lights: $75
• Bolt-on spare tire mount: $50 Click to view spare mount
• Stake pocket D-rings: $20 each for 6 or more. $25 each for less than 6. Click to view stake pocket D-rings
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
