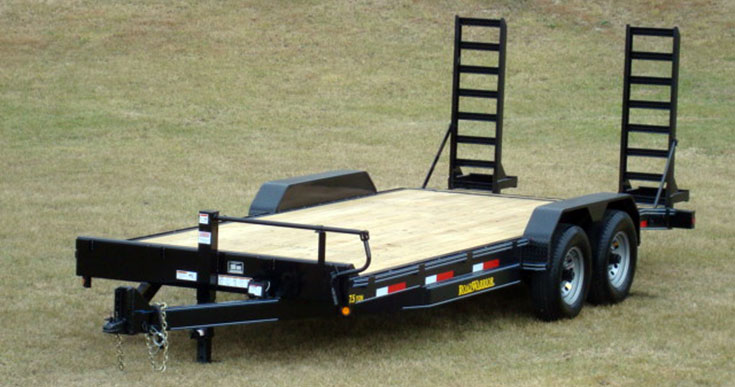

| Specifications - 7.5 Ton Equipment |
| Weight Rating: 15,000 LBS. GVWR w/evenly distributed load |
| Axles: 2 - 7,000# electric brakes, w/ez-lube, safety breakaway w/charger |
| Suspension: 6 leaf slipper springs |
| Tires & Wheels: ST235/80 R16 load range E radial tires, 8x6.5 bolt pattern silver mod wheels |
| Fenders: 9"x72" 14 ga. treadplate fenders |
| Hitch: Adjustable 2 5/16" ball or pintle (14,000# rated), H.D. safety chains |
| Jack: 10,000# dropleg |
| Structural: 7" channel frame & 6" Channel tongue, 3" channel crossmembers (16" centers)
|
| Tie Downs 14 stake pockets, 5" solid bump bar
|
| Ramps Spring assist stand up knee ramps, 5' tall x 18" wide |
| Electrical: All required lighting, sealed beam lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape |
| Floor: 2 X 8 treated yellow pine decking |
| Paint: Phenolic epxoy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call) |
Note: Trailer length includes dove tail. (Example: 18' trailer with dove tail has an 18' bed including the dove tail.)
Bed Size & Prices
Prices Current as of June, 2013
• 83" X 16' w/32" dove tail & knee ramps: $3,575
• 83" X 18' w/32" dove tail & knee ramps: $3,675
• 83" X 20' w/32" dove tail & knee ramps: $3,775
• 83" X 22' w/32" dove tail & knee ramps: $3,875
• 83" x 22' 7 ton tilt bed: Click to view 7 ton tilt bed equipment
Some Options
• Spare ST 235/80 R16 LR "E" tire w/silver mod wheel: $175
• Spare silver mod wheel w/o tire: $57
• Rubrail w/pipespools: $75
• 5' slide in ramps w/storage pockets in rear : N/C
• 2 5/16 ball coupler or pintle hitch: N/C
• Gooseneck package: $950
• 15,000# GVWR: Click to view 7.5 ton equipment trailer
• 102" wide package w/drive over fenders: $399 Click to view 102" package
• Tilt bed: Click to view 7 ton tilt bed equipment
• Aluminum tongue mounted toolbox: $199 Click to view aluminum tongue box
• Poly tongue mounted toolbox: $99 Click to view poly tongue box
• LED lights: $75
• Bolt-on spare tire mount: $50 Click to view spare mount
• Stake pocket D-rings: $20 each for 6 or more. $25 each for less than 6. Click to view stake pocket D-rings
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
|
|
;)
;)
;)
;)
;)
;)
