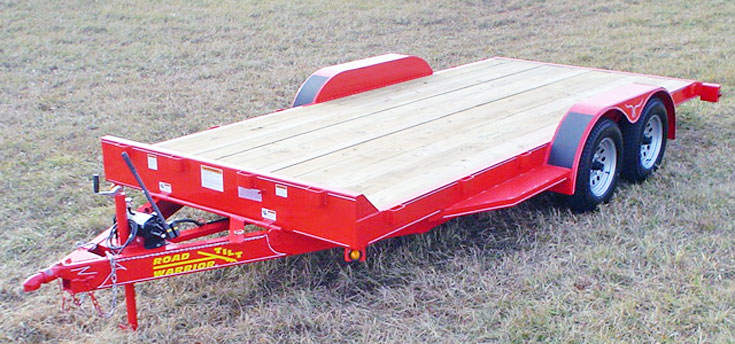

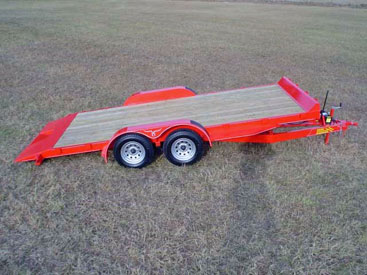

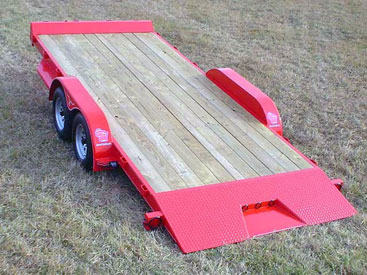

| Specifications - Car Hauler, Tilt Bed |
| Weight Rating: 7,000 LBS. GVWR w/evenly distributed load |
| Axles: 2- 3,500# electric brakes, w/ez-lube, safety breakaway w/charger |
| Suspension: 4 leaf double eye springs |
| Tires & Wheels: ST205/75 D15 load range C tires, 5x5 bolt pattern silver mod wheels |
| Fenders: 9"x72" 16 ga. smooth teardrop w/stoneguard |
| Hitch: 2" 7,000# Bulldog w/safety chains |
| Jack: 2,000# topwind Rapid Jack |

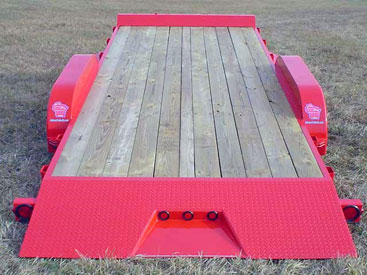

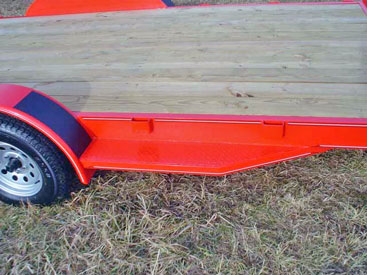

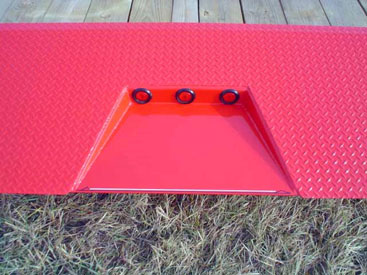

| Structural: 5" channel frame & tongue, 3" channel crossmembers (24" centers), 1/8" treadplate tail section & running board steps
|
| Tie Downs: 14 stake pockets |

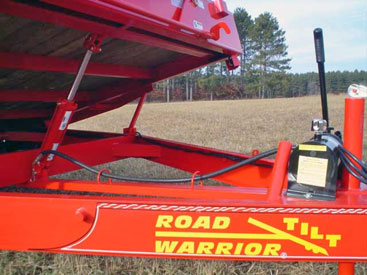

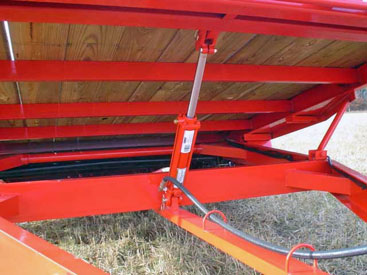

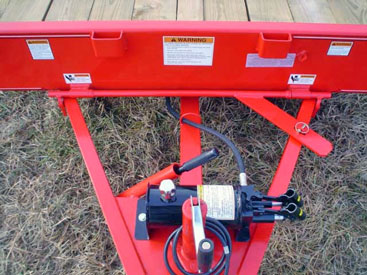

| Tilt: Special 2 speed hand hydraulic pump w/cylinder, pump handle storage, special cam lock bed latch system
|
| Electrical: All required lighting, LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector |
| Paint: Phenolic epxoy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call) |
Bed Size & Prices
Prices Current as of June, 2013
• 83" X 18': $3,195
• 83" X 20': $3,295
• 83" X 20' 5 ton tilt equipment: Click to view 5 ton tilt bed equipment trailer
• 83" X 22' 7 ton tilt equipment: Click to view 7 ton tilt bed equipment trailer
Some Options
• Now standard with LED lights
• Spare 205/75 D15 LR "C" tire w/silver mod wheel: $109
• Spare silver mod wheel w/o tire: $45
• Second electric brake: N/C (Incl. as standard equipment)
• 7,000# drop leg jack (in lieu of standard): $60
• 2 5/16 Bulldog ball coupler (in lieu of standard): $50
• Electric/hydraulic lift (in lieu of hand operated): $525
• 14 ga. treadplate heavy duty fenders: $100
• 102" wide package w/drive over fenders: $399 Click to view tilt bed 102 package
• 10,000# GVWR: Click to view 5 ton tilt bed equipment trailer
• Ramp Extenders (for low clearance vehicles): $149 Click to view ramp extenders
• Bolt-on spare tire mount: $50 Click to view spare mount
• Stake pocket D-rings: $20 each for 6 or more. $25 each for less than 6. Click to view stake pocket D-rings
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
