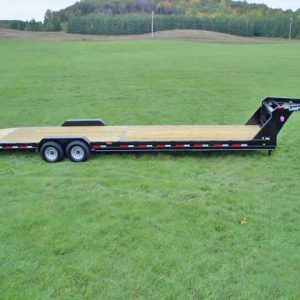

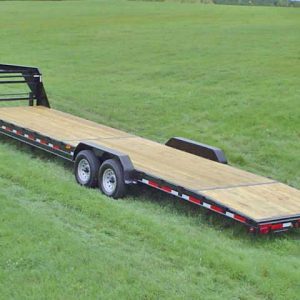

Low Profile Gooseneck Trailer

• Low profile “bed between the tires” makes this trailer the right choice for hauling pickups, cars,
equipment or anything a lower bed height is desired.•

Weight Rating: 14,000 LBS. GVWR or 20,000 LBS. GVWR w/evenly distributed load

Axles:2 – 7,000# electric brakes, w/ez-lube, safety breakaway w/charger

Suspension: 7 leaf slipper springs

Tires & Wheels: ST235/80 R16 load range E radial tires, 8×6.5 bolt pattern silver mod wheels

Fenders: 9″x72″ 16 ga. smooth teardrop w/stoneguard, 9″x108″ 16 ga. smooth teardrop w/stoneguard

Jack: 10,000# dropleg

Hitch: 2 5/16 adjustable gooseneck or pintle, H.D. safety chains

Structural: 8″ channel frame & neck, 3″ channel crossmembers (16″ centers), 38′ & 40′ have 10″ channel frame & neck

Tie Downs: Stake pockets on 24″ centers

Special Features: Chain tray, spare tire mount in neck

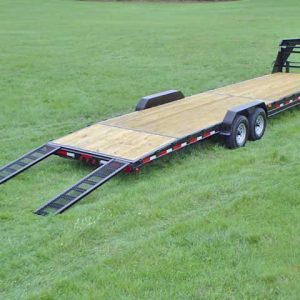

Ramps & Dove Tail: For car hauling trailers: 80″ X 16″, 2X2 tubing ramps w/mesh grip, rear slide-in. 60″ tapered frame dovetail. For equipt. type trailers: 5′ X 16″, 3″ channel stand up knee ramps. 32″ dove tail

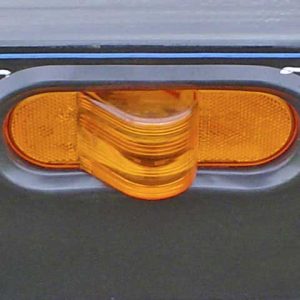

Electrical: LED lights w/mid-turn signals, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape

Floor: 2 X 8 treated yellow pine decking

Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish

Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors – please call)

Bed Size & Prices

• 83″ x 24′ 7 ton: $8,740

• 83″ X 26′ 7 ton: $8,920

• 83″ X 28′ 7 ton: $9,075

• 83″ X 30′ 7 ton: $9,230

• 83″ X 32′ 7 ton: $9,410

• 83″ X 34′ 7 ton: $9,570

• 83′ X 36′ 7 ton: $9,720

• 83′ X 38′ 7 ton w/10″ channel frame & neck: $10,325

• 83″ X 40′ 7 ton w/10″ channel frame & neck: $10,535

• Click to view 5 ton equipment gooseneck (add gooseneck package from options)

• Click to view 6 ton equipment gooseneck (add gooseneck package from options)

• Click to view 7 ton equipment gooseneck (add gooseneck package from options)

• 10.5 ton equipment or car hauler gooseneck (See 21,000# GVWR tri-axle package in options)

Some Options

• Spare ST235/80 R16 LR “E” tire w/silver mod wheel: $210

• Spare silver mod wheel w/o tire: $75

• Adjustable pintle or gooseneck hitch: N/C

• King pin adapter for gooseneck (in lieu of gooseneck ball coupler): $240

• Second 10,000# dropleg jack: $195

• 14 ga. treadplate fenders: tandem – $125, tri-axle – $350

• 21,000# GVWR tri-axle package: $1,450 Click to view

• Dove tail & ramps – car hauler type, equipment trailer type, or straight bed & slide-in ramps: N/C

• 102″ wide package w/drive over fenders – thru 20′ length: $700, over 20′ length – add $35 per linear foot Click to view 102″ wide package

• Stake pocket D-rings: $26 each for 6 or more. $32 each for less than 6. Click to view stake pocket D-rings
