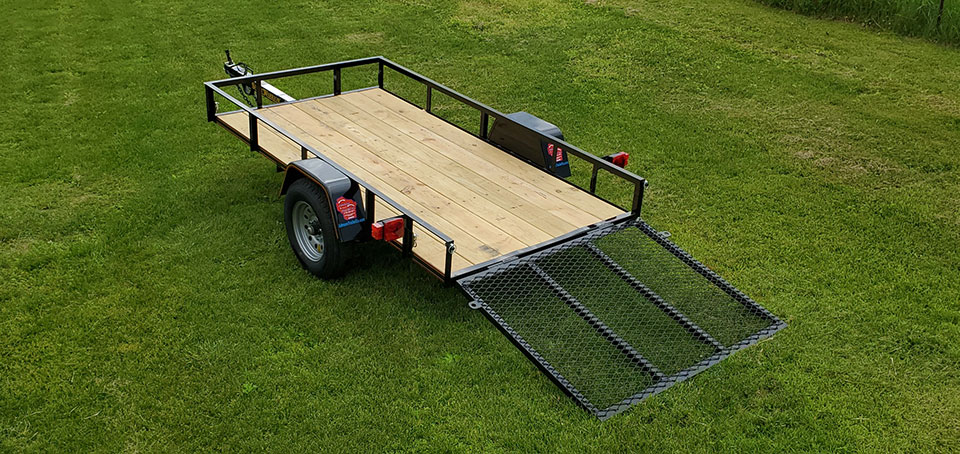

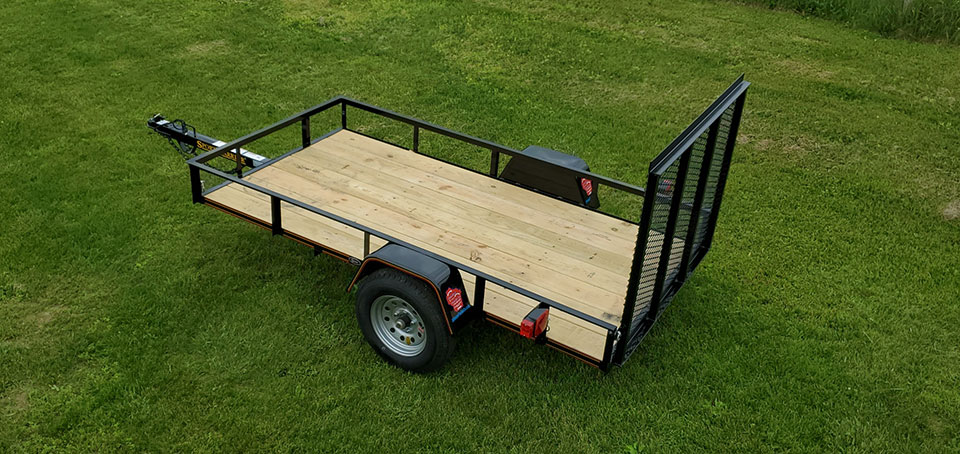

Mini-Single Axle Utility Trailer
• A light duty and handy little trailer •
Trailer may be shown with optional equipment.
| Specifications – Mini-Single Axle Utility w/Side Rails |
| Weight Rating: 2,000 LBS. GVWR w/evenly distributed load |
| Axle: 1 – 3,500# |
| Suspension: 3 leaf double eye springs |
| Tires & Wheels: ST 175/80 D13, load range C tires, 5×4.5 bolt pattern silver mod wheels |
| Fenders: 8″x28″ 16 ga. smooth w/stoneguard |

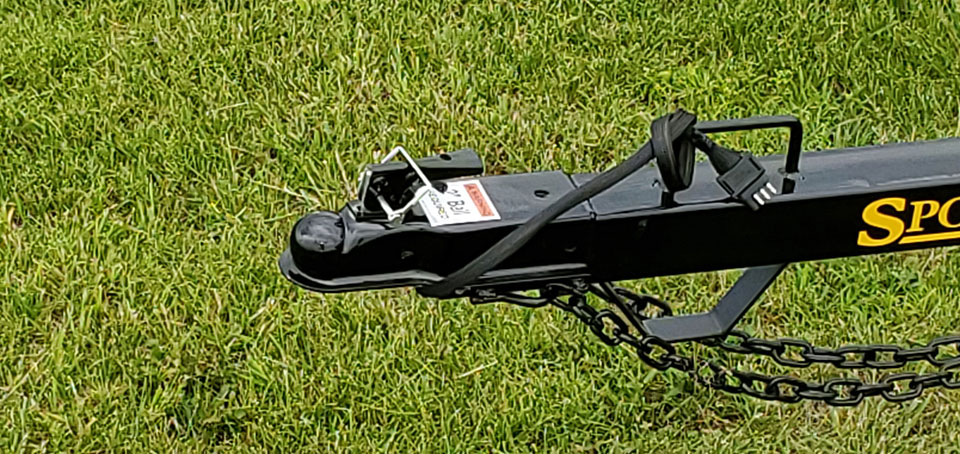

| Hitch: 2″ w/safety chains |
| Structural: 2X2X3/16 frame & crossmembers, 1.5X1.5.X1/8 top rail & upright, 3X3 formed square tubing tongue (w/stand & handle) |

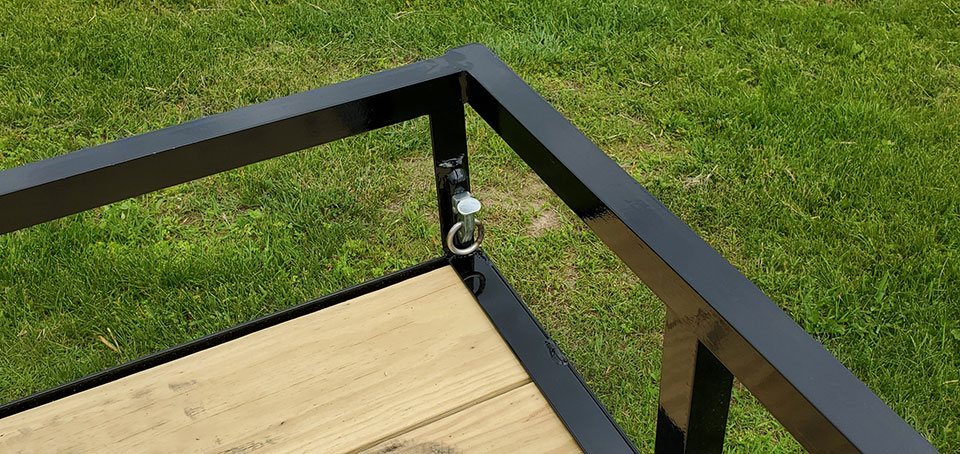

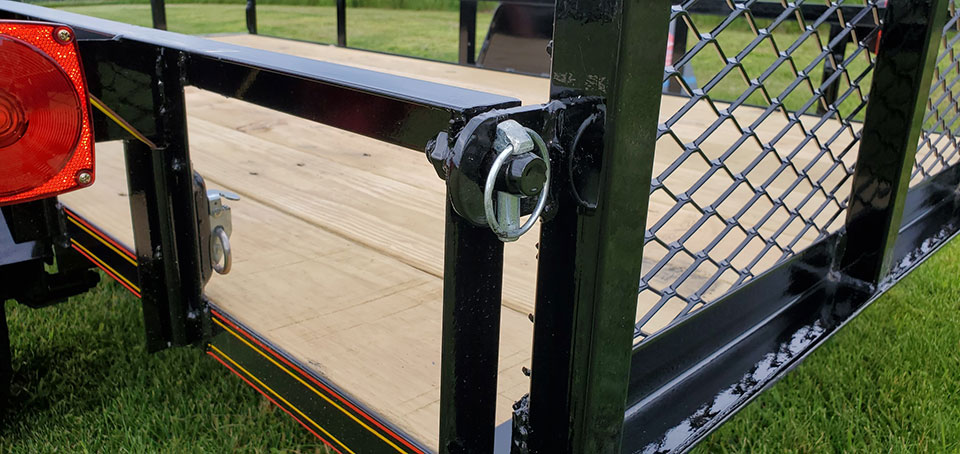

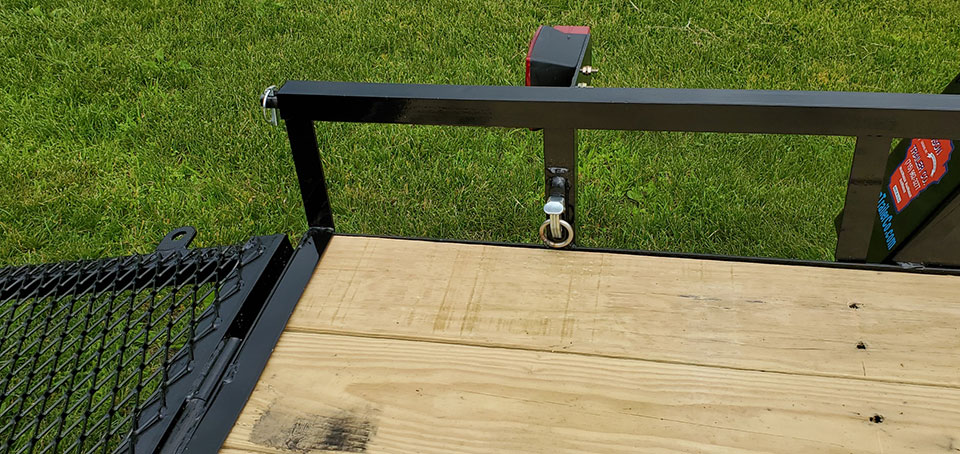

| Tie Downs: Trailer equipped with 4 SNAP-LOC tie down sockets. Snap rings are shown in options list |
| Electrical: All required lighting, license bracket w/light, wiring in conduit w/flat 4 way connector |
| Floor: 2X8 treated yellow pine decking |
| Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish. |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors – please call) |
Bed Size & Prices
• 4.5′ X 9′ w/Tilt Bed: $1,315
• 4.5′ X 6′ w/Ramp Gate: $1,400
• 4.5′ X 8′ w/Ramp Gate: $1,400
• 4.5′ X 9′ w/Ramp Gate: $1,425
Some Options
• Spare ST 175/80 D13 tire w/silver mod wheel: $75
• SNAP-LOC tie down rings: $5 each
Note: Trailer comes already equipped w/4 SNAP-LOC sockets (SNAP-LOC tie down rings sold separately).

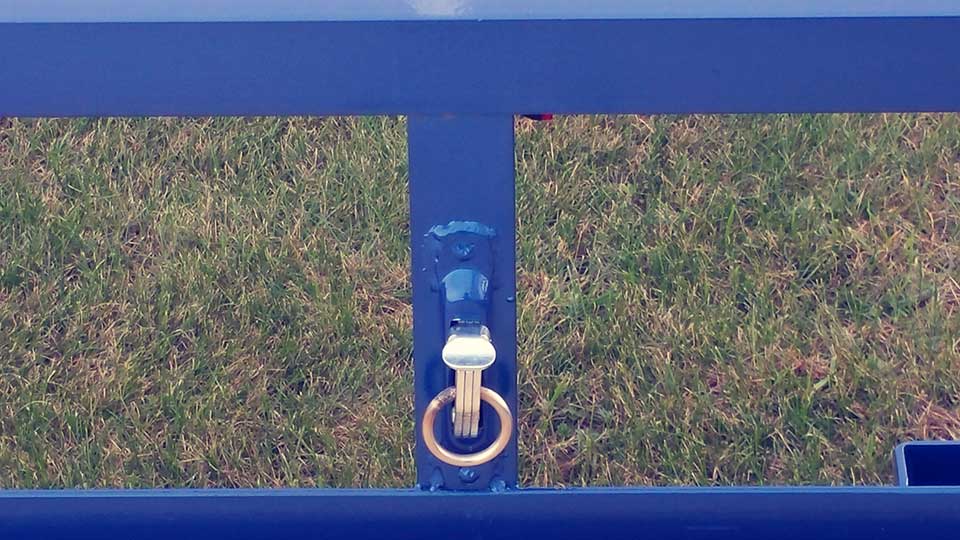

Complete SNAP-LOC tie down system
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
