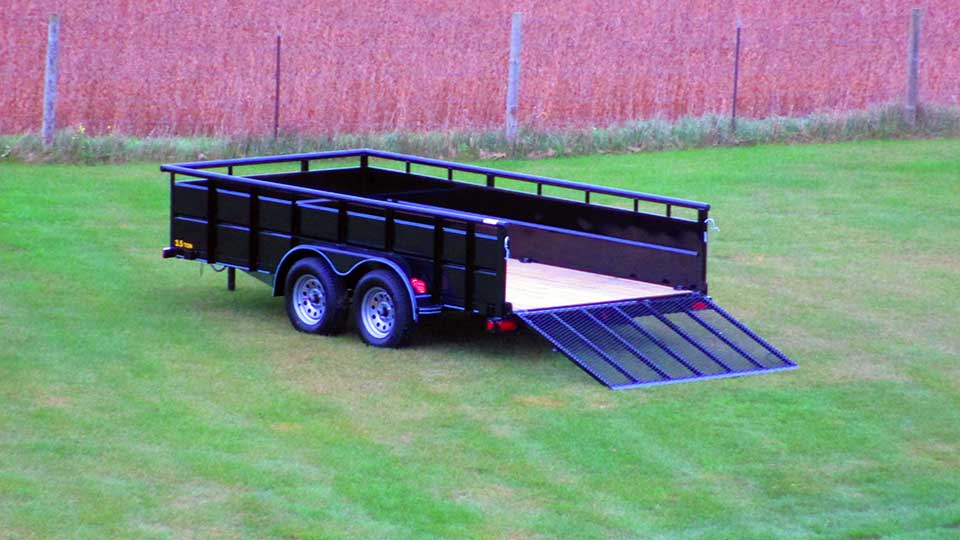

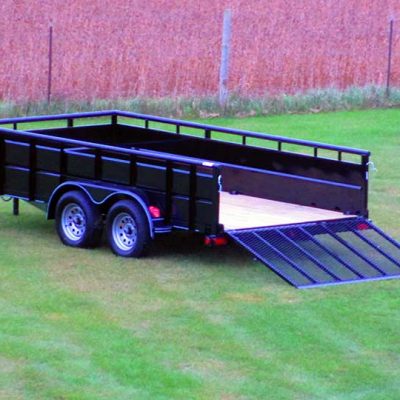

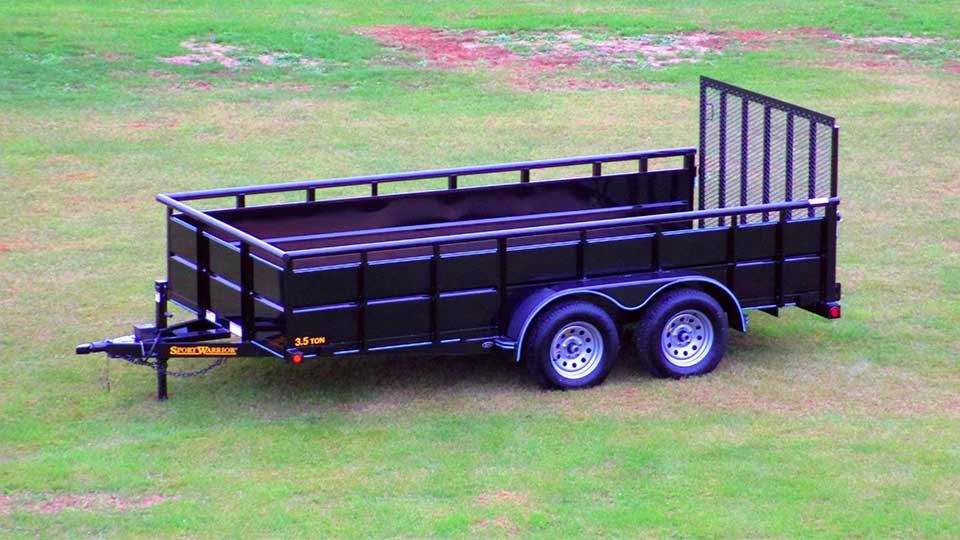

Tandem Axle Hi-Sides Trailer

• Fixed solid steel sides with pipe top rail you can tie your load to. •



Specifications – Tandem Axle Hi-Side Utility Trailer

Weight Rating: 7,000 LBS. GVWR w/evenly distributed load

Axles: 2- 3,500# electric brakes, w/ez-lube, safety breakaway w/charger

Suspension: 4 leaf double eye springs

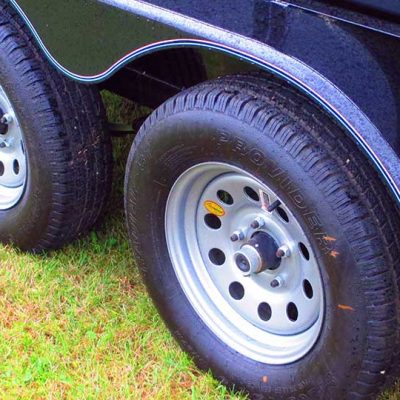

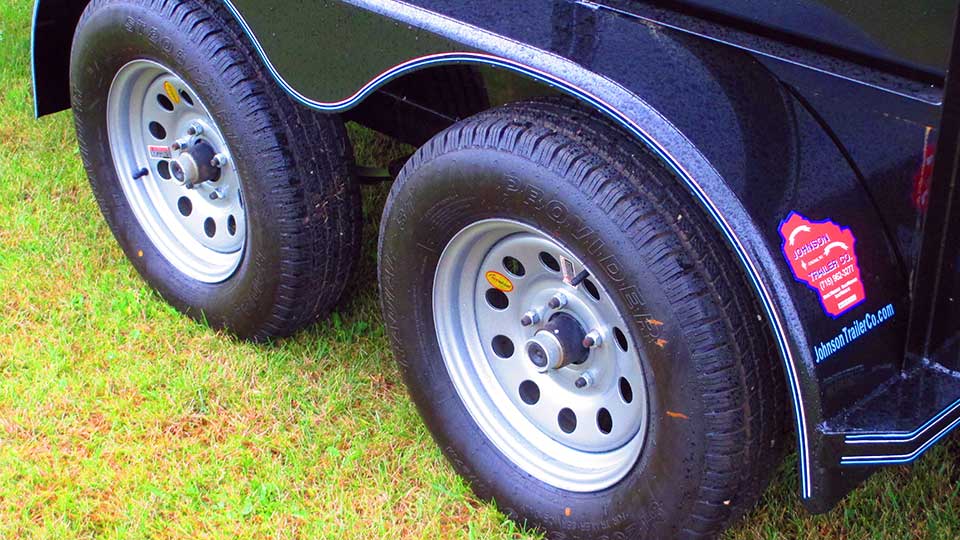

Tires & Wheels: ST 205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels

Fenders: 9″x72″ 16 ga. smooth teardrop w/stoneguard

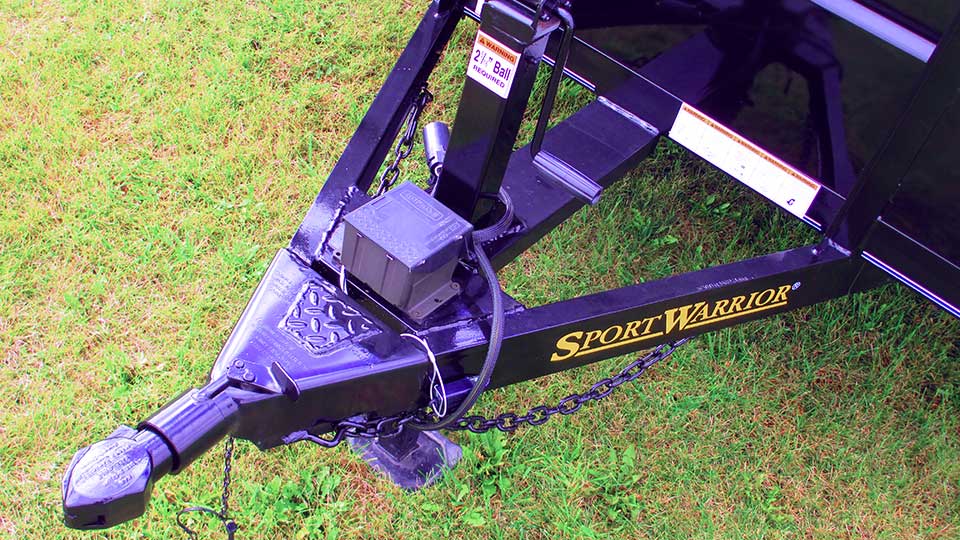

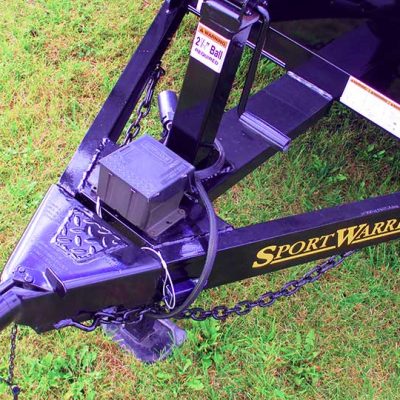

Hitch: 2 5/16″ Bulldog w/safety chains

Jack: 7,000# dropleg jack

Structural: 4″ channel tongue, 2 X 3 X 3/16 crossmembers (24″ centers), 2 3/8″ pipe top rail & 2 X 2 X 3/16″ uprights

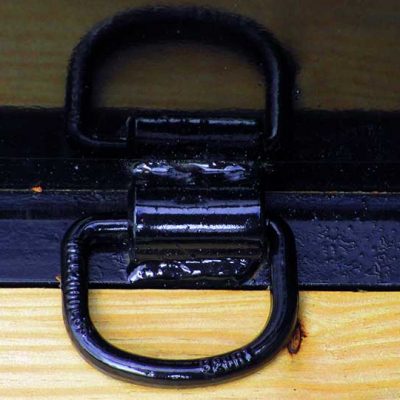

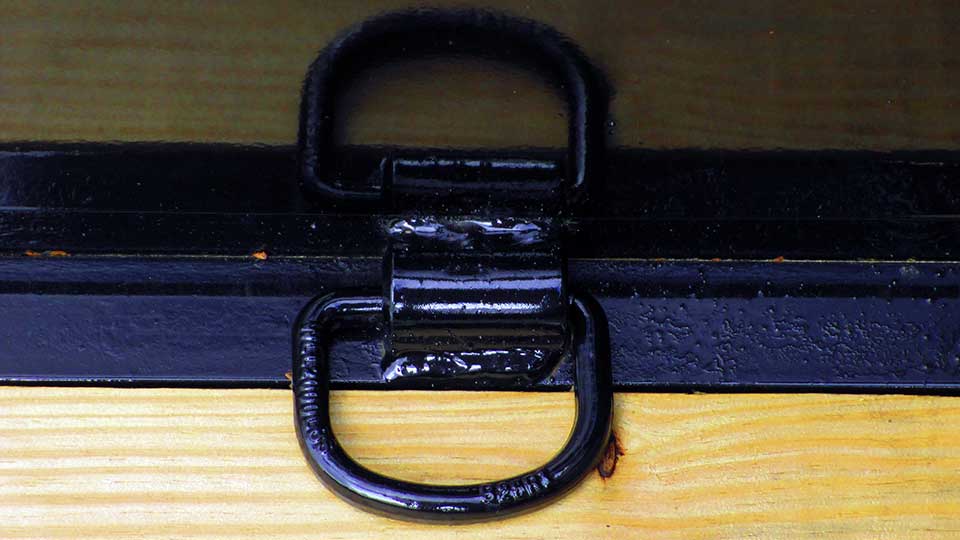

Tie Downs: 6 D-rings in box

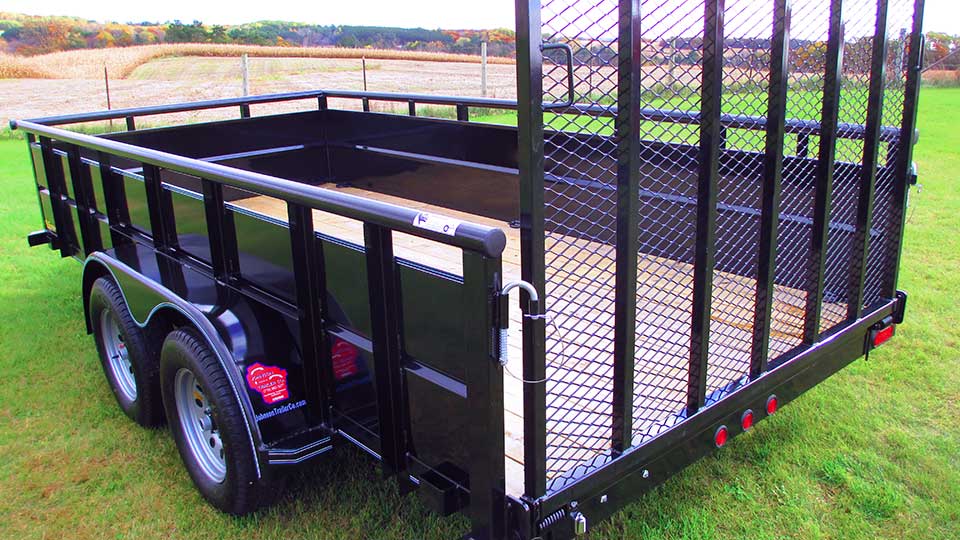

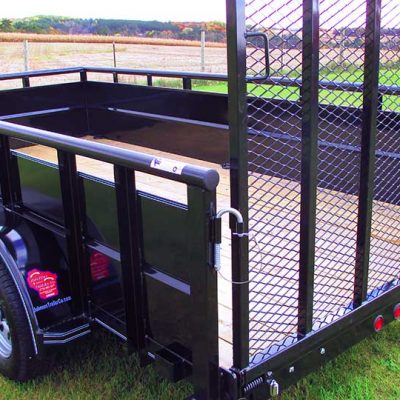

Sides: Pre-formed solid steel panels w/V crimps, 2 3/8″ pipe top rail, 30″ height overall

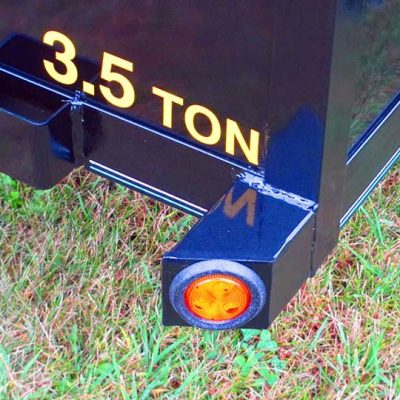

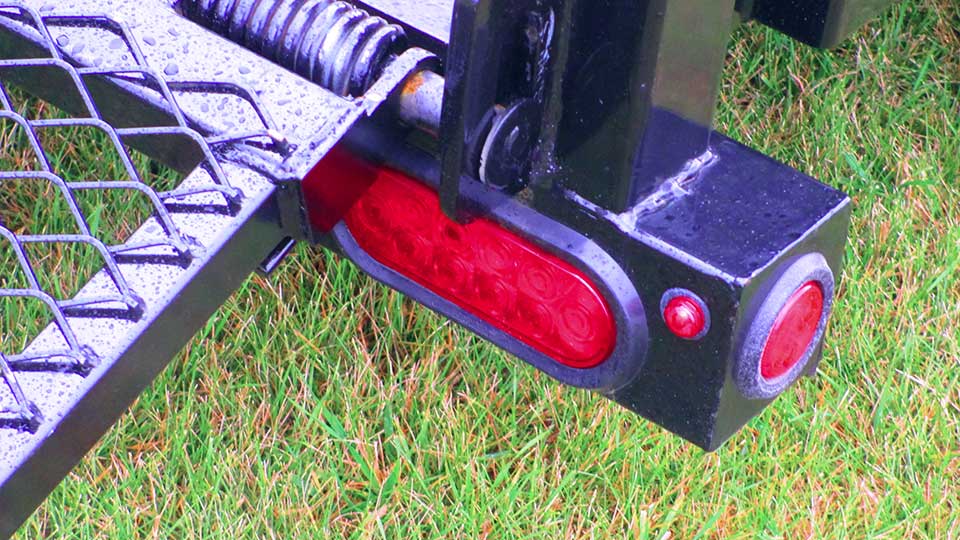

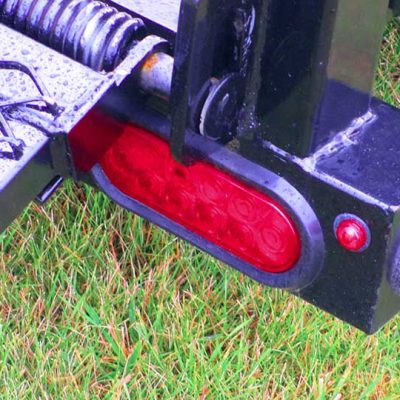

Electrical: LED lighting, license bracket w/light, wiring in conduit w/7 way connector

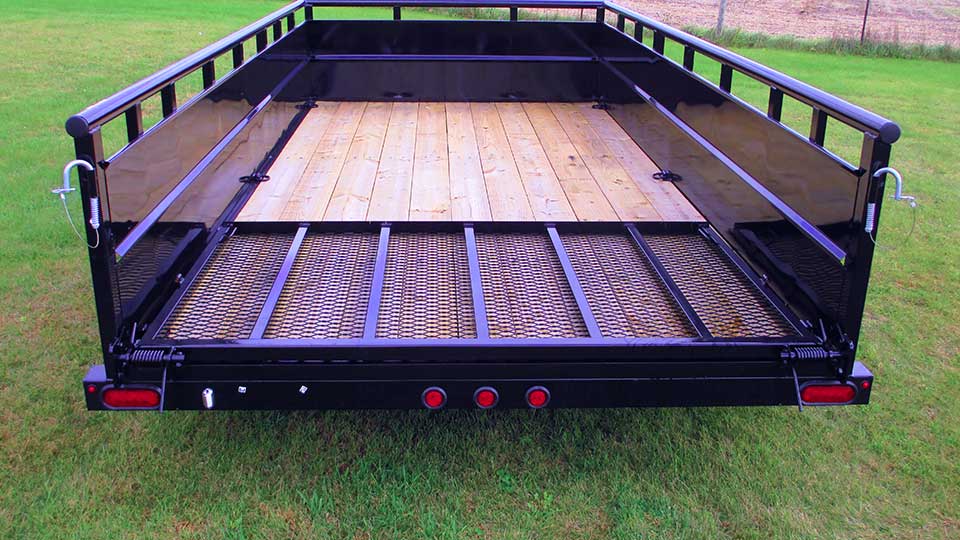

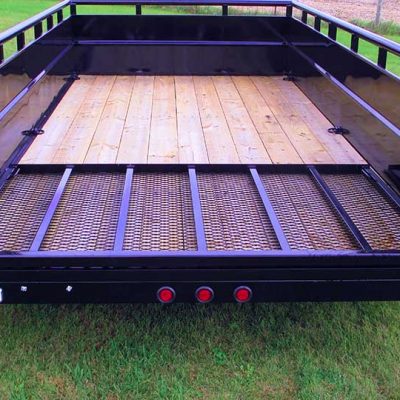

Floor: 2X8 treated yellow pine decking

Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish

Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors – please call)

Note: Prices do not include ramp gate or ramps (see choices listed in options category.)

Bed Size & Prices

• 77″ X 12′: $4,565

• 77″ X 14′: $4,695

• 83″ X 14′: $4,765

• 83″ X 16′: $4,960

Custom built sizes available!!
(Add option prices listed below)

Some Options

• Spare ST 205/75 R15 LR “C” tire w/silver mod wheel: $150

• Spare silver mod wheel w/o tire: $60

• 5′ wide bed (in lieu of 77″ or 83″):N/C

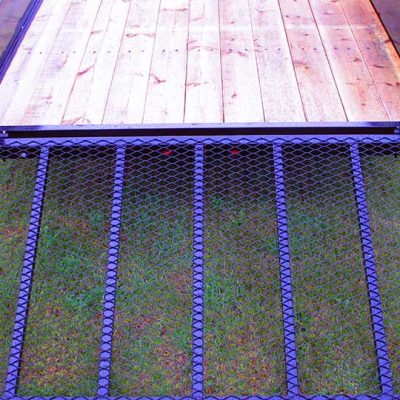

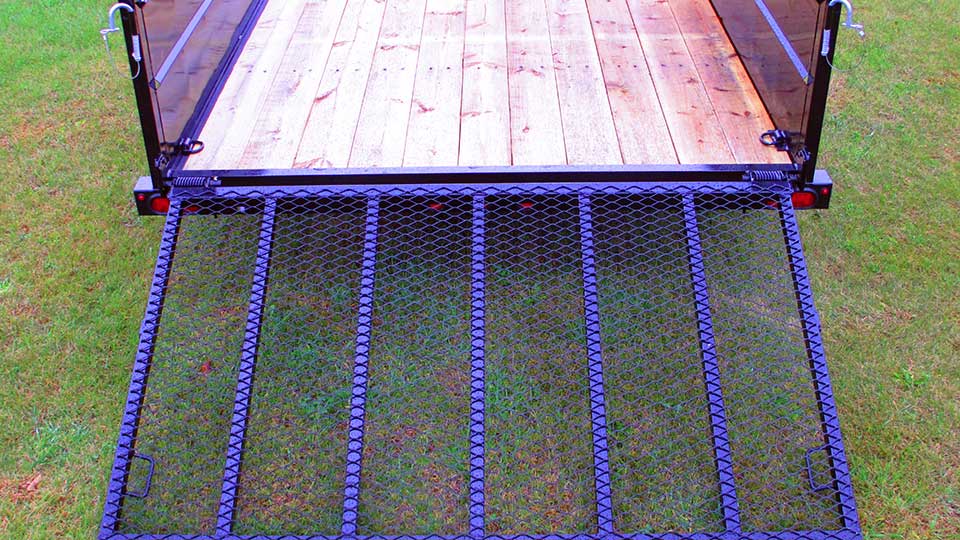

• 48″ standard ramp gate: 77″ wide: $220 or 83″ wide: $235

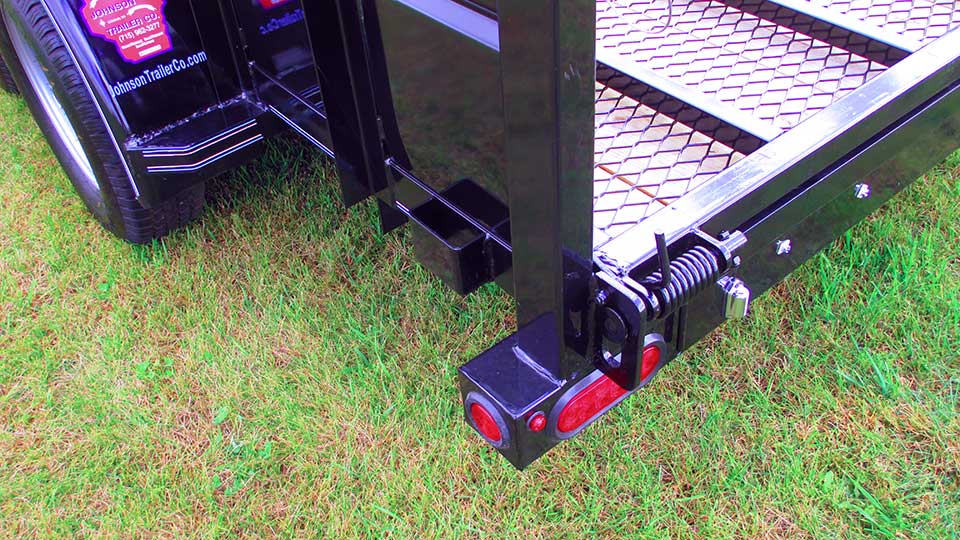

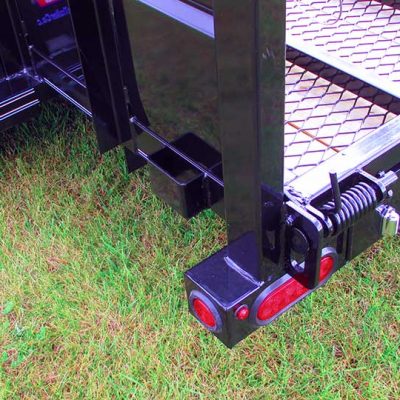

• Ramp gate spring assist: $25 each. Note: Two springs required for 77″ and 83″ wides.

• 5′ standard ramp gate: all widths: $300

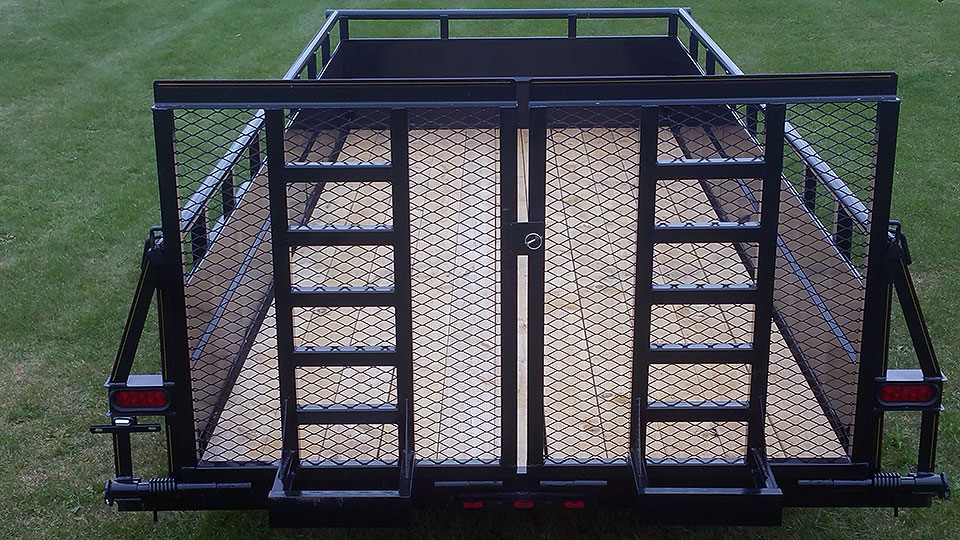

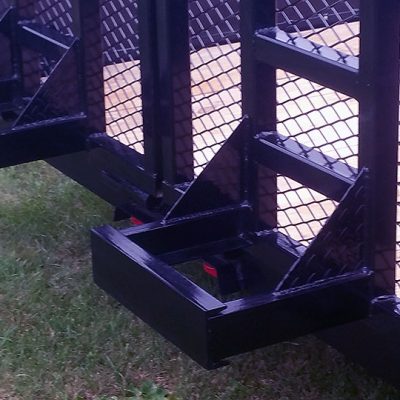

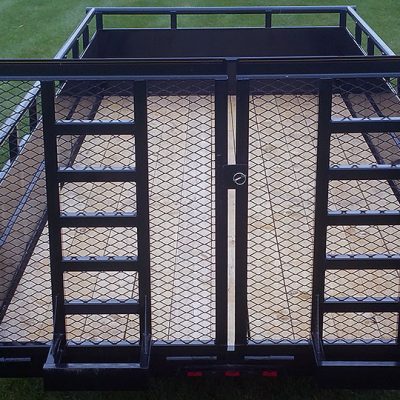

• 48″ split tractor ramp gate w/knees & spring: $495

• 5′ split tractor ramp gate w/knees & spring: $550

• Double swing (barn door style) gates on rear: $400

• 9,990# GVW Pkg: 5200# electric brake axles, ST225/75 R15 load range D tires, 6 bolt silver mod wheels, 5 leaf double eye springs, 4x3x1/4 frame, 2x2x3/16 uprights, 3″ channel crossmembers (24″ centers), 5″ channel tongue, 4-5/8 weld on D-rings: $670
