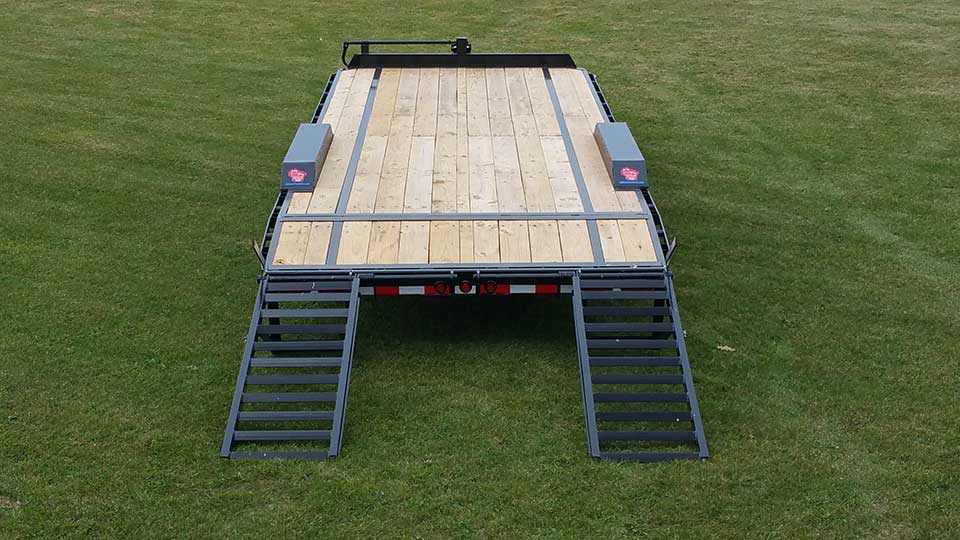

10 Ton Equipment Trailer

Specifications – 10 Ton Equipment

Weight Rating: 20,000 LBS. GVWR w/evenly distributed load

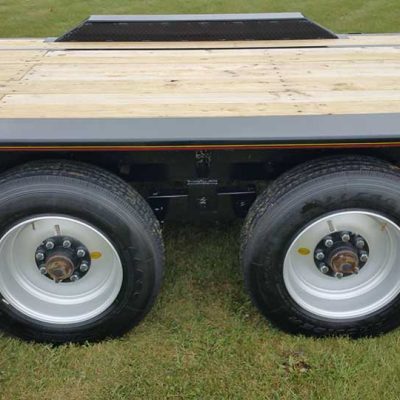

Axles: 2-10,000# Dexter axles, self-adjusting electric brakes,oil bath hubs, safety breakaway w/charger

Suspension: 5 leaf slipper springs

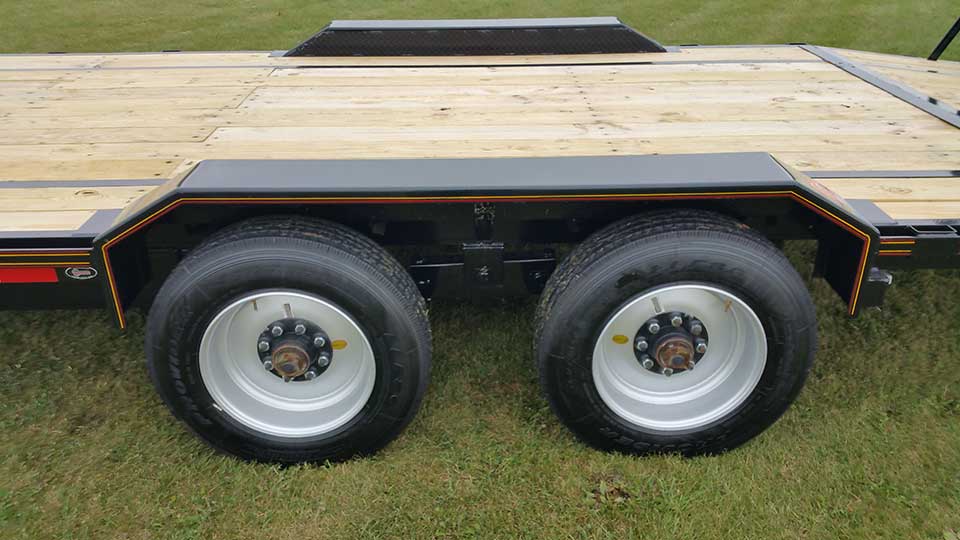

Tires & Wheels: 215/75 R 17.5 load range H radial tires, 8×6.5 bolt pattern heavy duty wheels

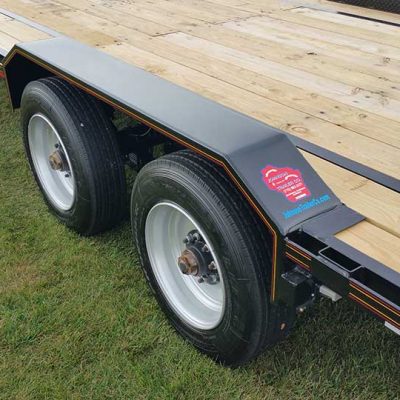

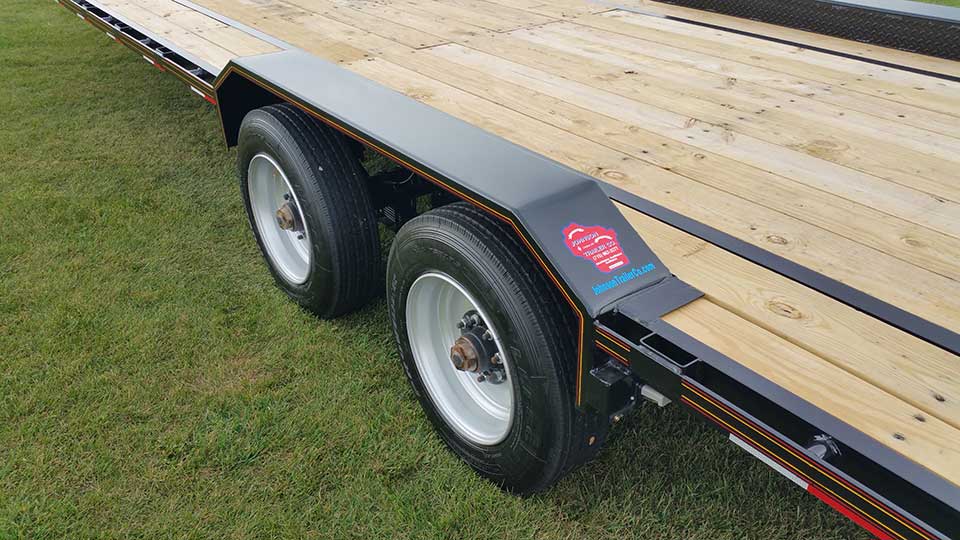

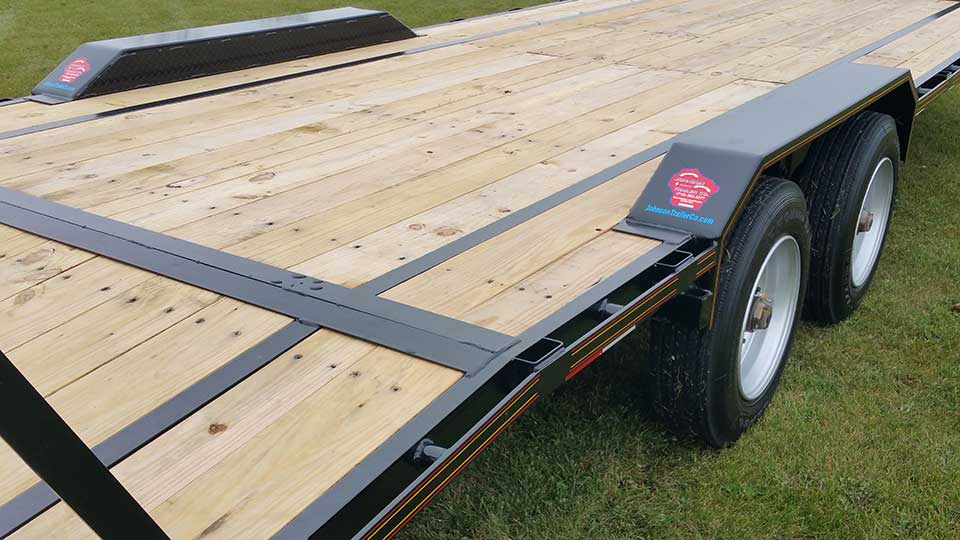

Fenders: 3/16″ heavy duty drive over fenders

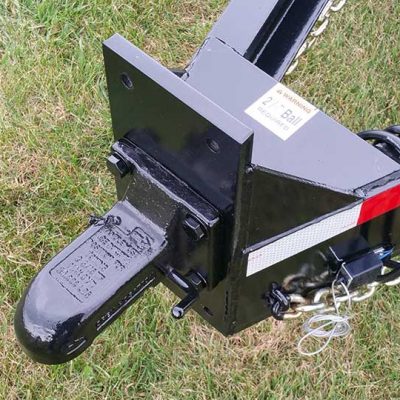

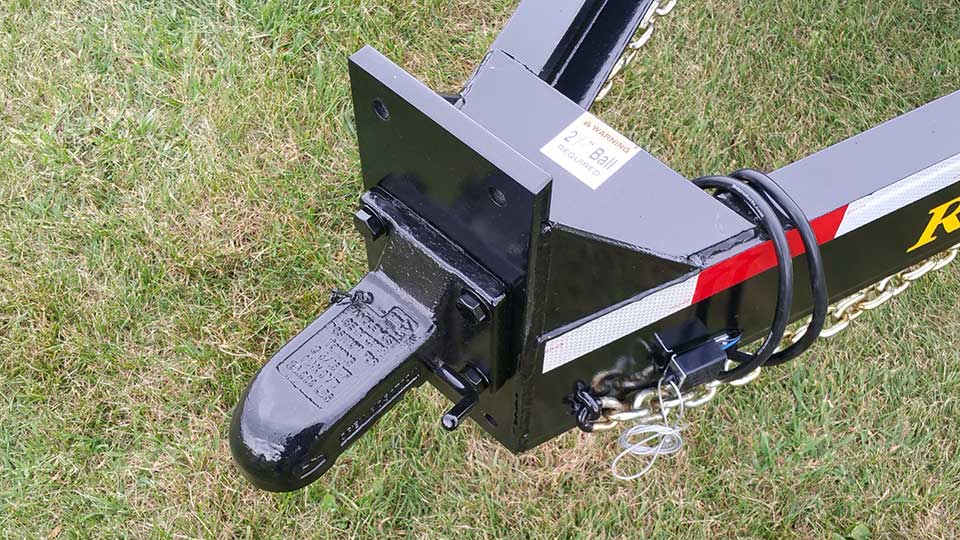

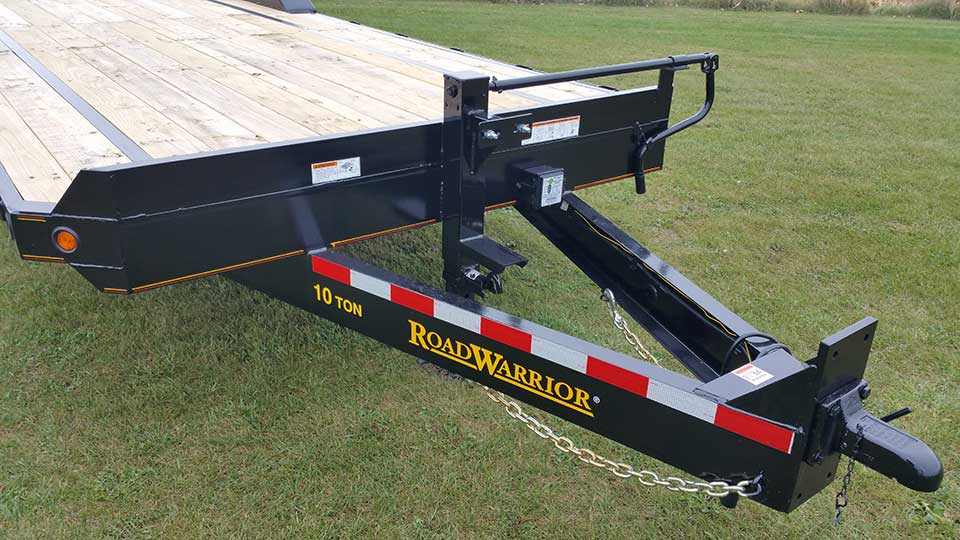

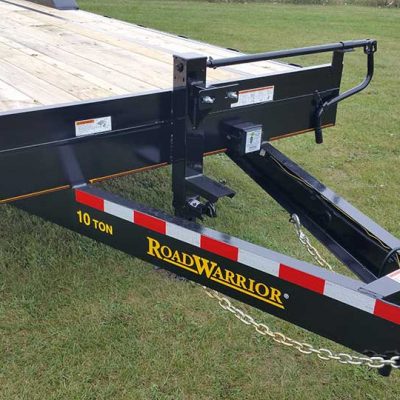

Hitch: Adjustable 4 bolt 2 5/16″ ball or pintle eye

Jack: 12,000# dropleg

Spare Mount: Spare tire mount welded to front of jack in tongue area

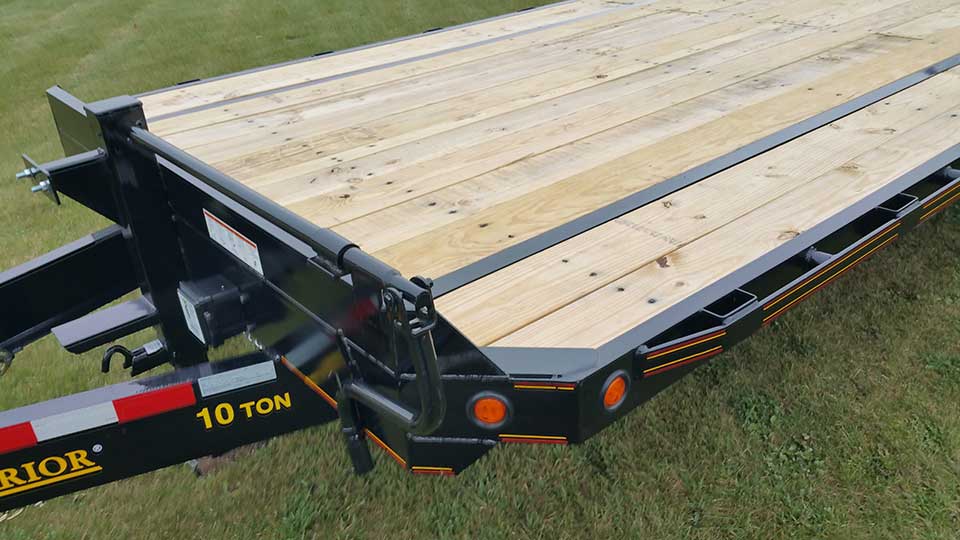

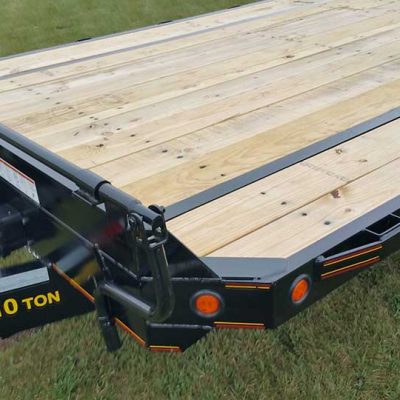

Structural: 8″ channel frame & tongue, 3″ channel crossmembers (16″ centers) pierced through frame, 5″ channel lace rail

Tie Downs: Stake pockets and rub rail, tubing front bump bar

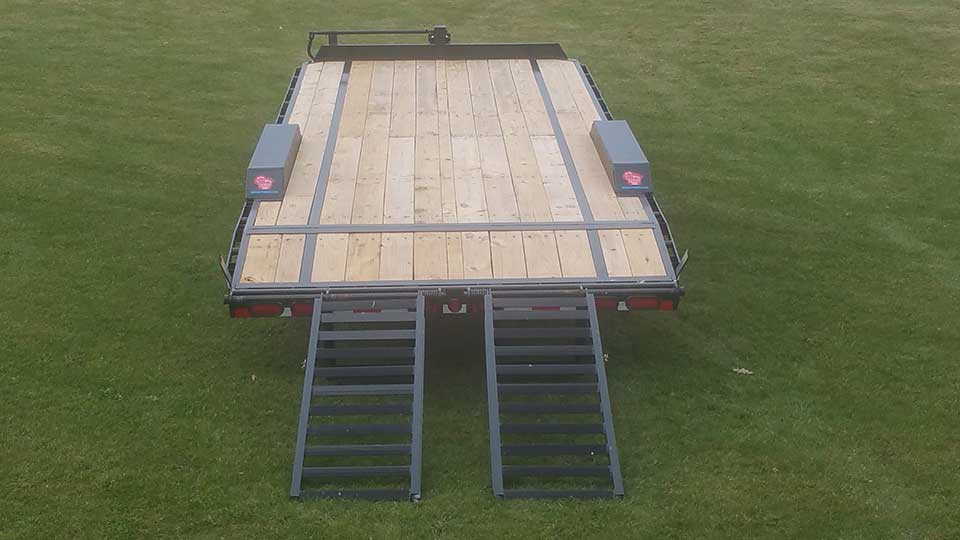

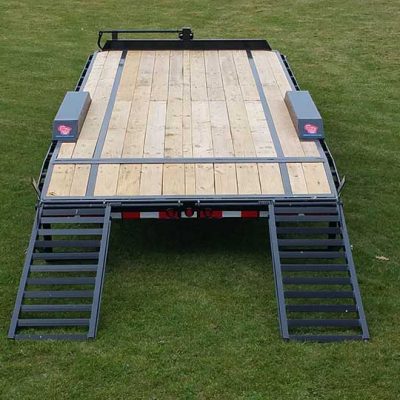

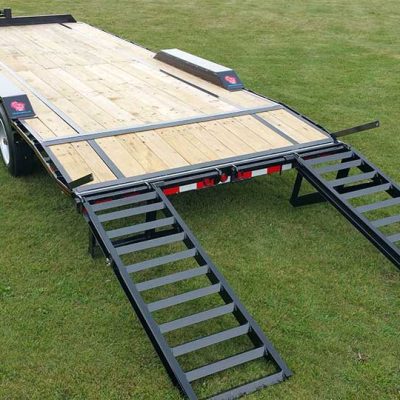

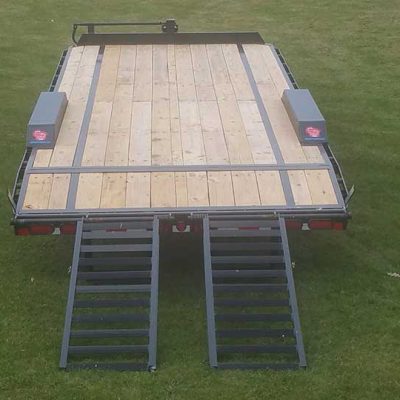

Ramps Spring assist heavy duty stand up knee ramps, 6′ tall x 23″ wide

Special Features: 102″ wide pkg. w/drive over fenders. (Bed is widened out in front and behind fenders)

Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape

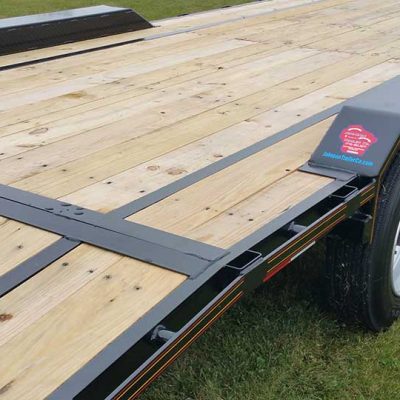

Floor: 2 X 8 treated yellow pine decking

Paint: Phosphate etched pretreatment with epoxy primer and acrylic finish

Colors Available: Gloss Black, Victory Red, Charcoal, Bright Blue, Safety Orange, Safety Yellow, Federal Yellow

Note: Trailer length includes dove tail. (Example: 20′ trailer with dove tail has a 20′ bed including the dove tail.)

Bed Size & Prices

• 102″ X 20′ w/36″ dove tail & knee ramps: $11,525 Now $10,830

• 102″ X 22′ w/36″ dove tail & knee ramps: $11,795 Now $10,880

• 102″ X 24′ w/36″ dove tail & knee ramps: $12,165 Now $10,960

• 102″ X 26′ w/36″ dove tail & knee ramps: $12,485 Now $11,200

• 102″ X 28′ w/36″ dove tail & knee ramps: $12,905 Now $11,480

• 102″ X 30′ w/36″ dove tail & knee ramps: $13,225 Now $11,615

Some Options

• Gooseneck package (comes with spare tire carrier in neck): $1,400

• Second 10,000# dropleg jack: $195

• Spare 215/75 R 17.5 load range H radial w/matching wheel: $380 Now $330

• Mini-MAXI ramps: $750
