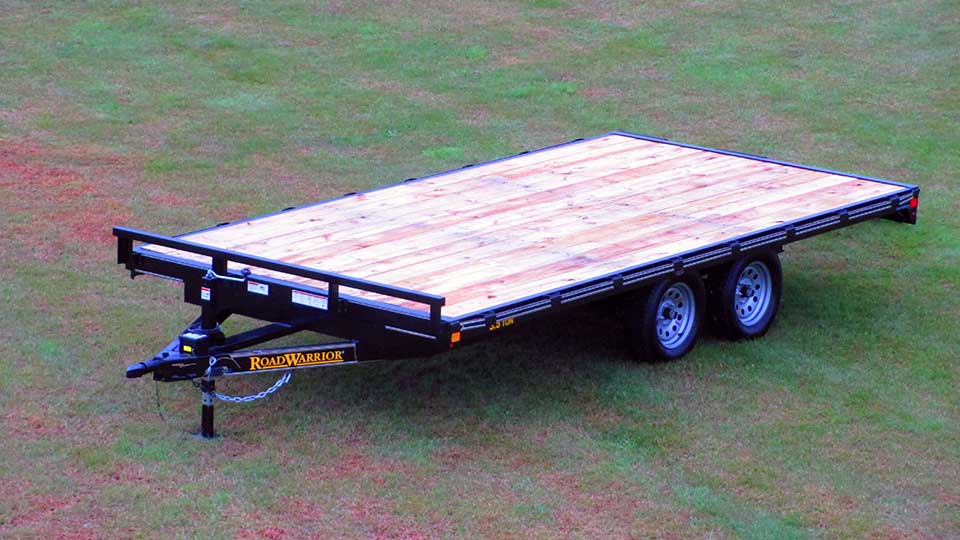

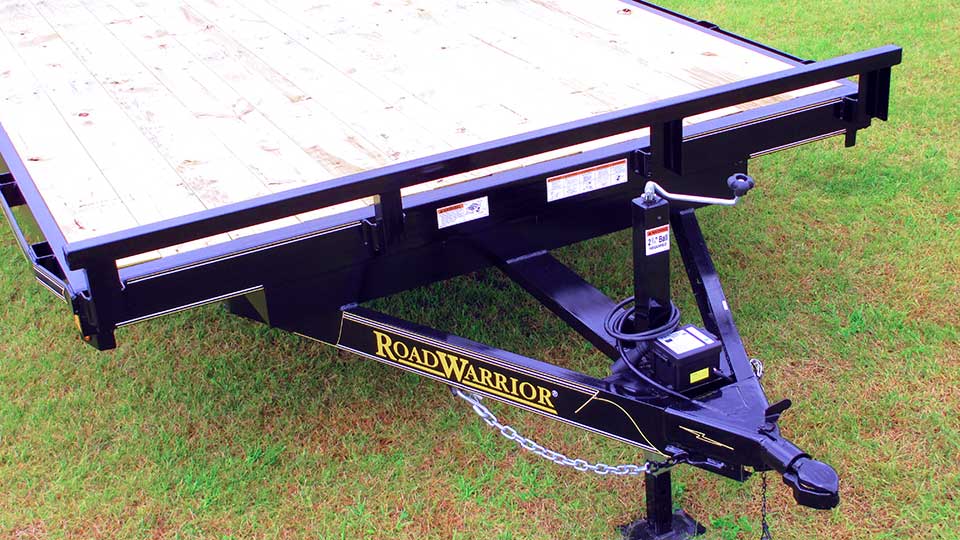

3.5 Ton Deckover/ATV Trailer

• Allows you to haul ATV’s side by side and many other uses where you need a full width bed.•



Trailer may be shown with optional equipment.
Specifications – 3.5 Ton Deckover / ATV Trailer
Weight Rating: 7,000 LBS. GVWR w/evenly distributed load

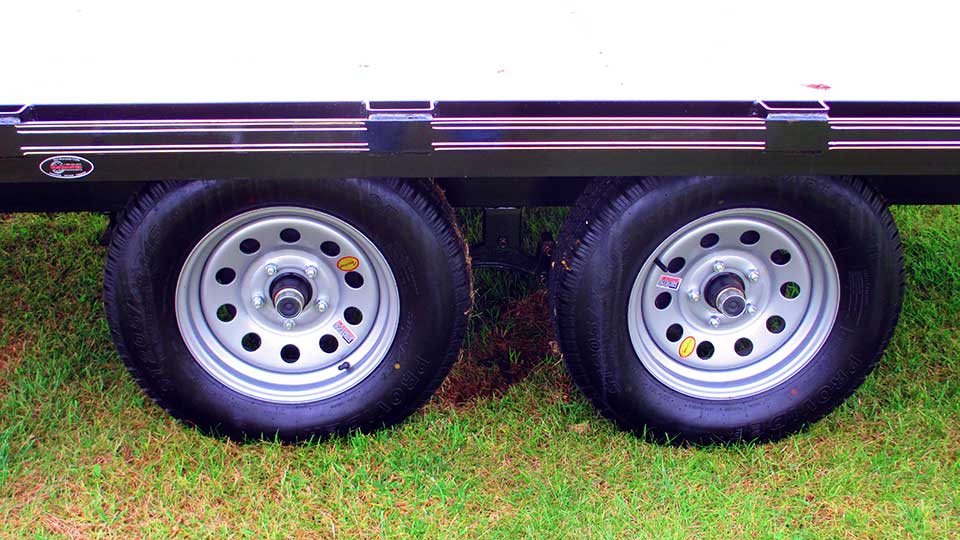

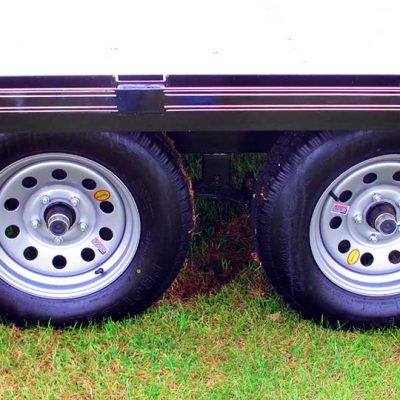

Axles: 2- 3,500# electric brakes, w/ez-lube, safety breakaway w/charger
Suspension: 4 leaf double eye springs
Tires & Wheels: ST 205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels

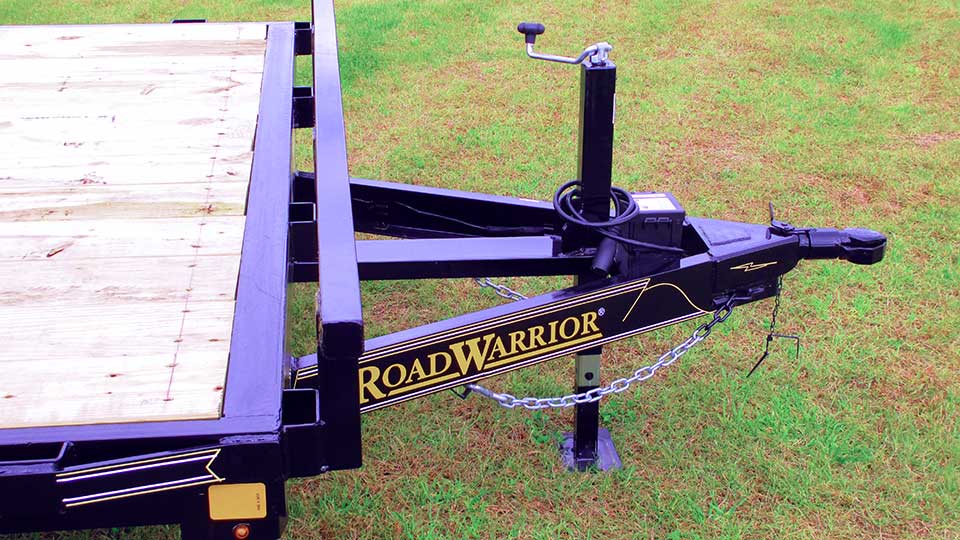

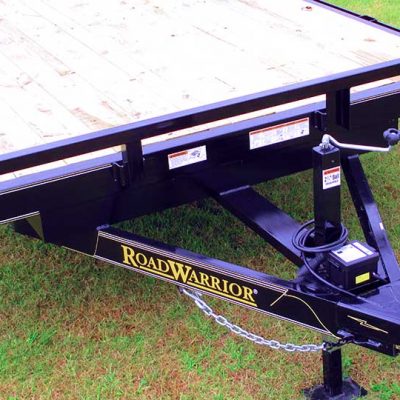

Hitch: 2 5/16″ Bulldog w/safety chains

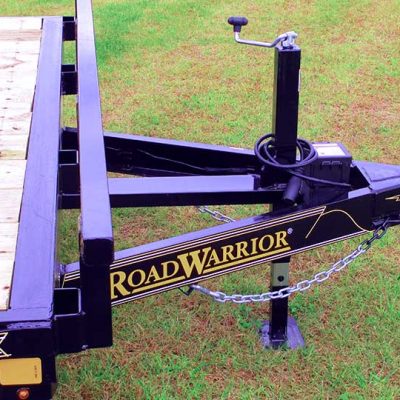

Jack: 7,000# dropleg jack
Structural: Stacked 5″ channel frame, 5″ channel tongue, 3″ channel crossmembers (24″ centers)
Tie Downs: 2 X 2 tubing bump bar, stake pockets and rub rail

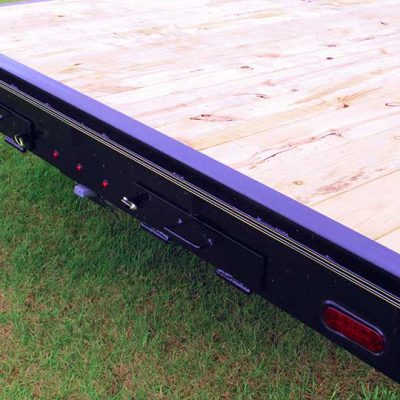

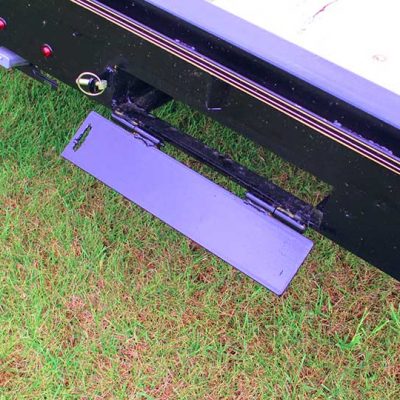

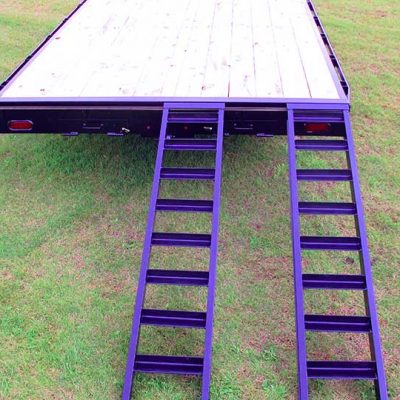

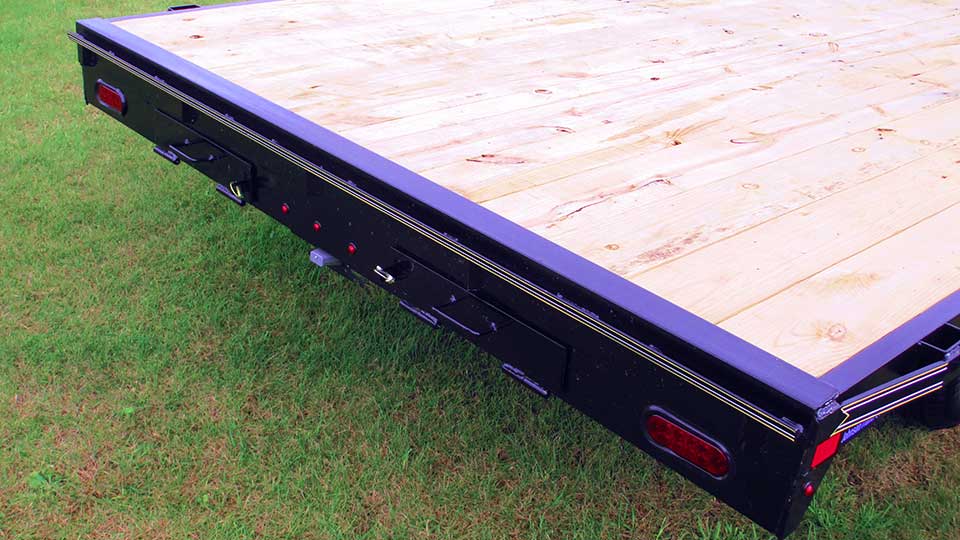

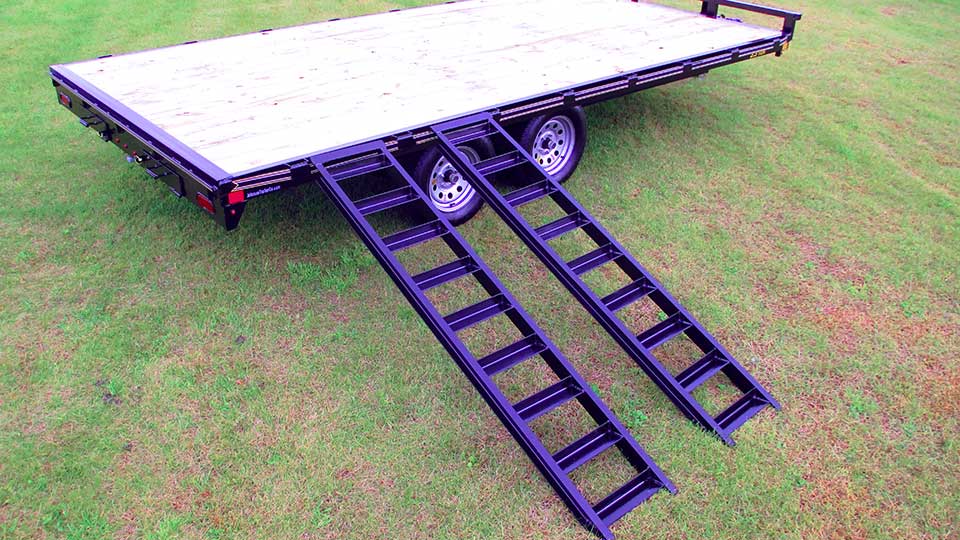

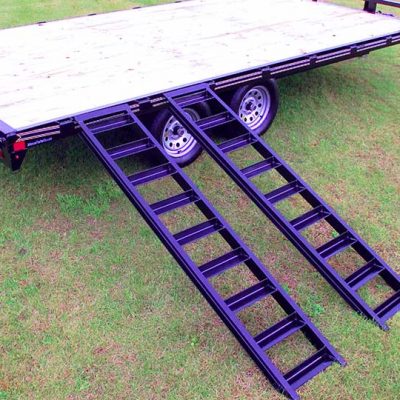

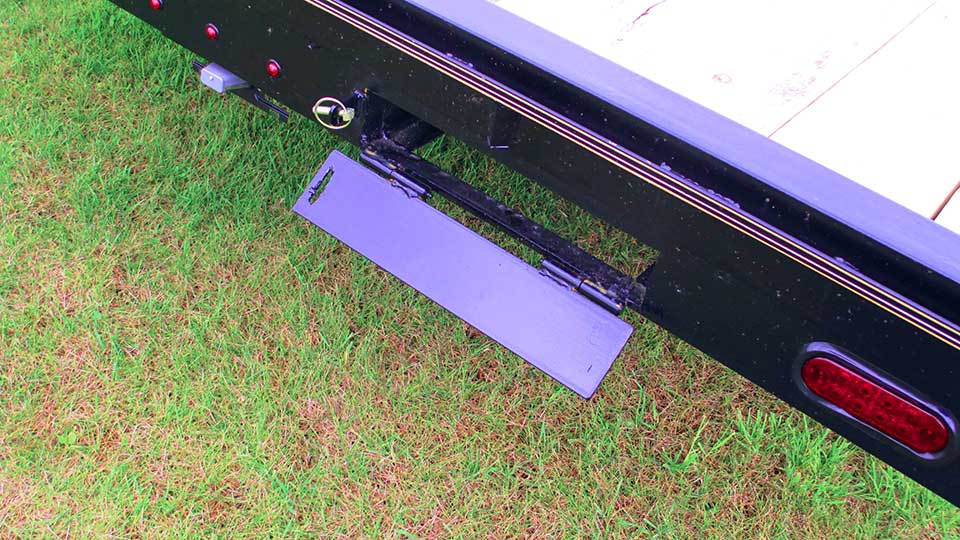

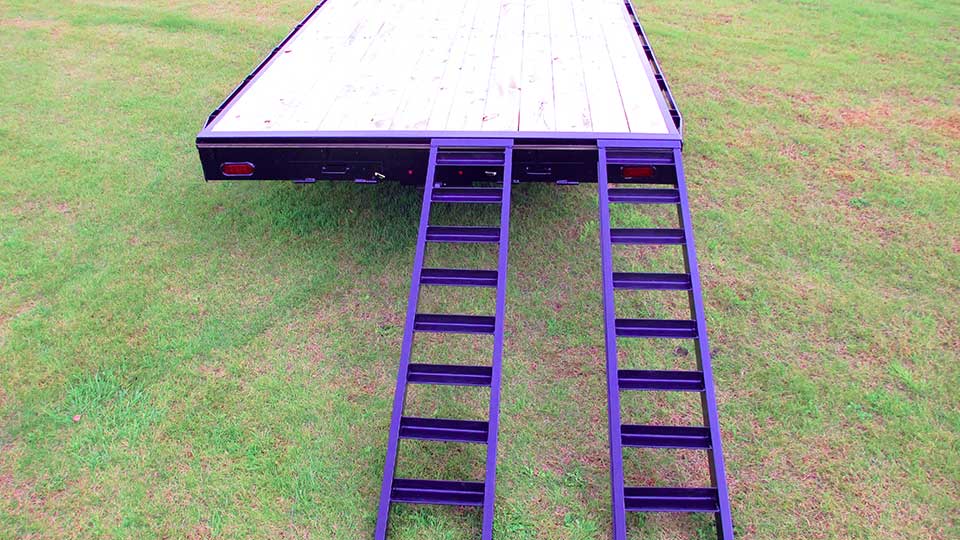

Ramps: 12″ wide X 7′ long, slides in from rear

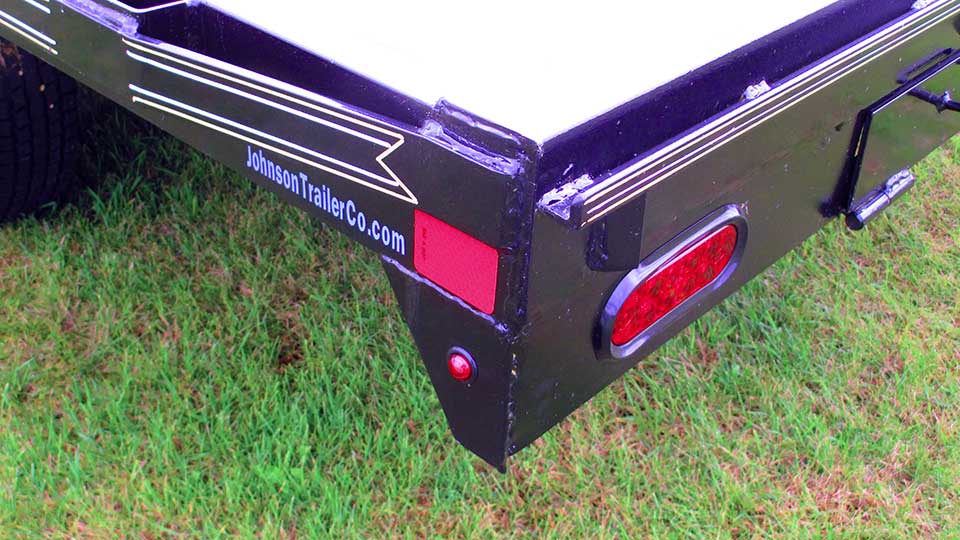

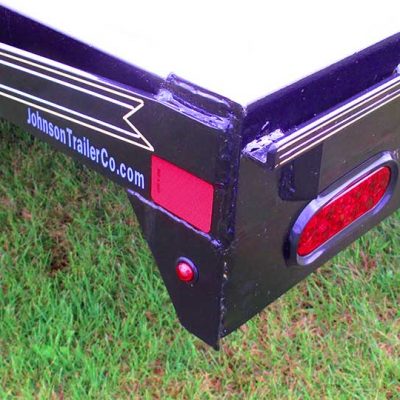

Electrical: LED lights, license bracket w/light and 7 way connector

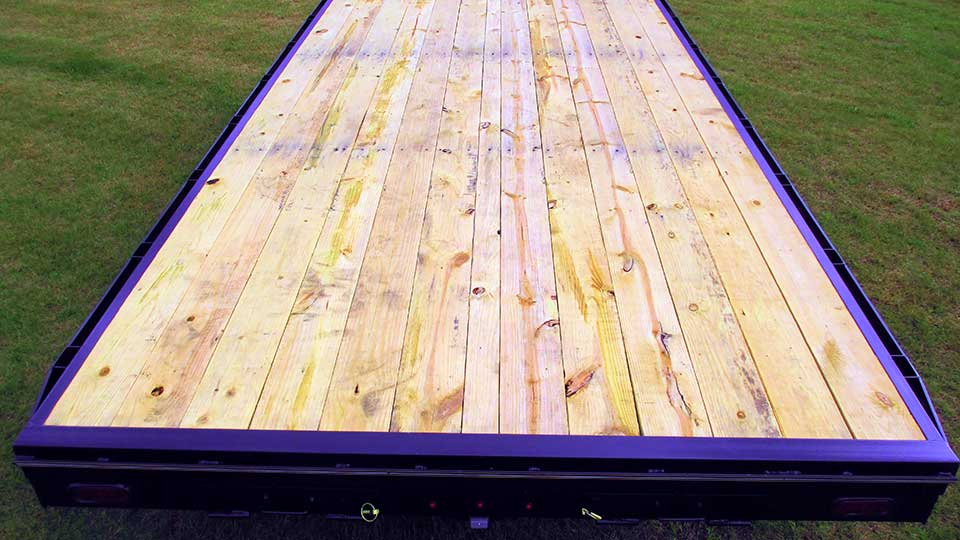

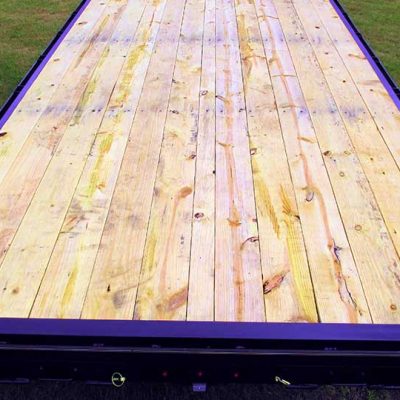

Floor: 2X8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors – please call)


Bed Size & Prices

• 102″ X 16′: $4,920

• 102″ X 20′: $5,220

printable-brochure-button-250px

Some Options

• Spare ST 205/75 R15 LR “C” tire w/silver mod wheel: $150

• Spare silver mod wheel w/o tire: $60

• Stake pocket D-rings: $26 each for 6 or more. $32 each for less than 6. Click to view stake pocket D-rings

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
