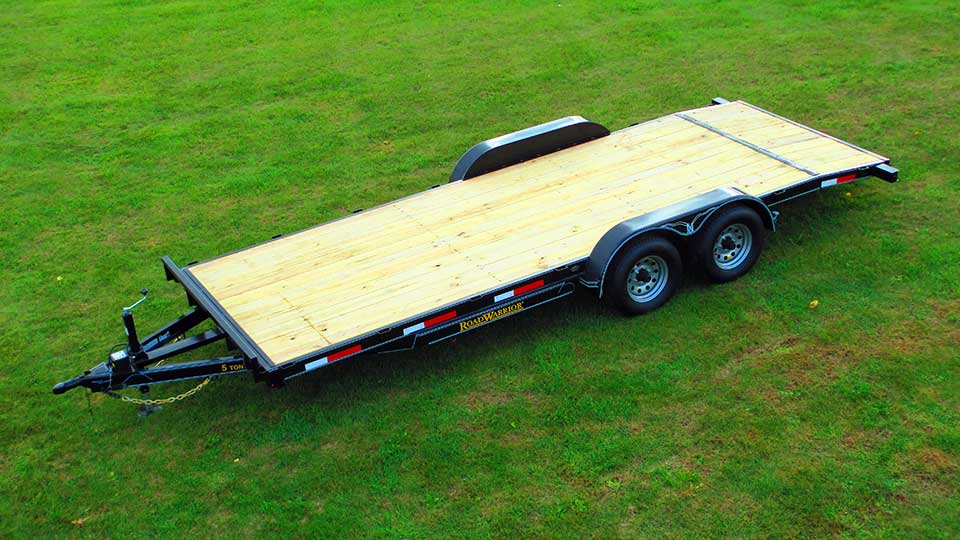

5 Ton Car Hauler Trailer

Specifications – 5 Ton Car Hauler

Weight Rating: 10,000 LBS. GVWR w/evenly distributed load

Axles: 2 – 5200# electric brake axles w/ez lube, safety breakaway w/charger

Suspension: 5 leaf double eye springs

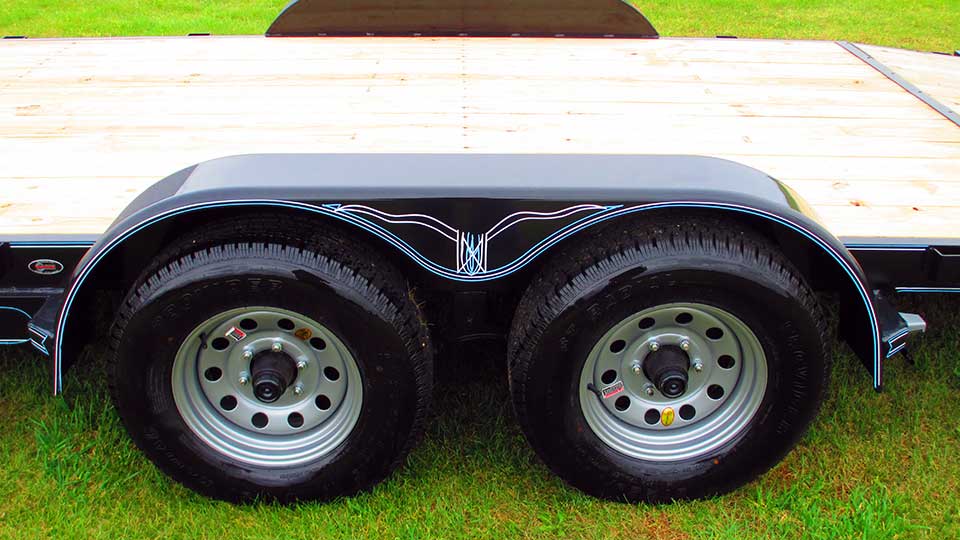

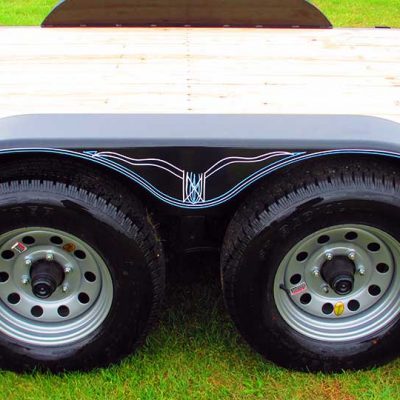

Tires & Wheels: ST225/75 R15 load range D tires, 6×5.5 bolt pattern silver mod wheels

Feature: Spare tire mount

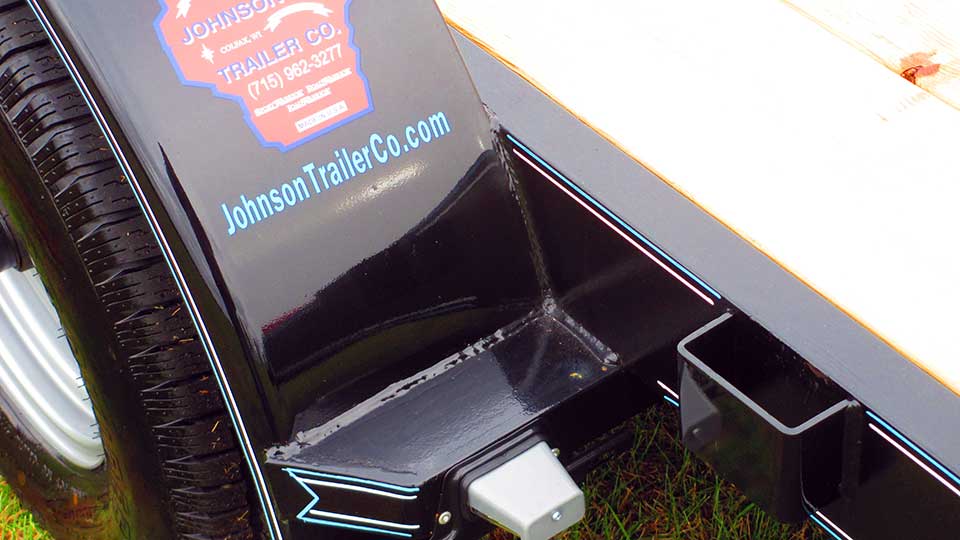

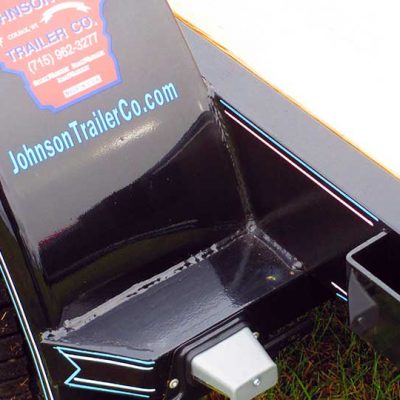

Fenders: 9″x72″ 16 ga. smooth teardrop w/stoneguard

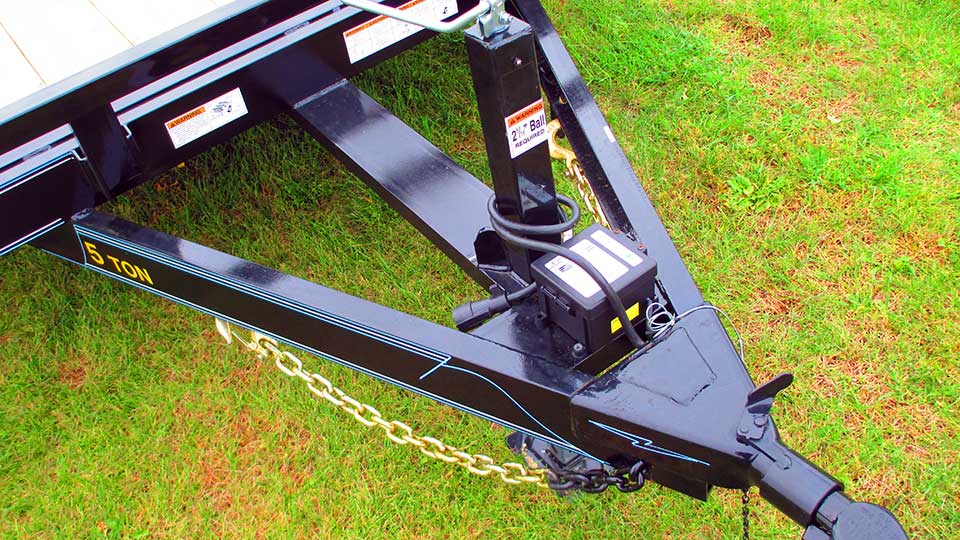

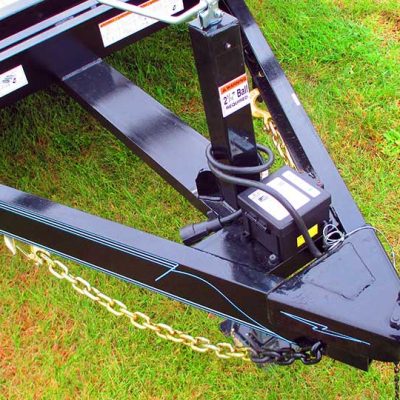

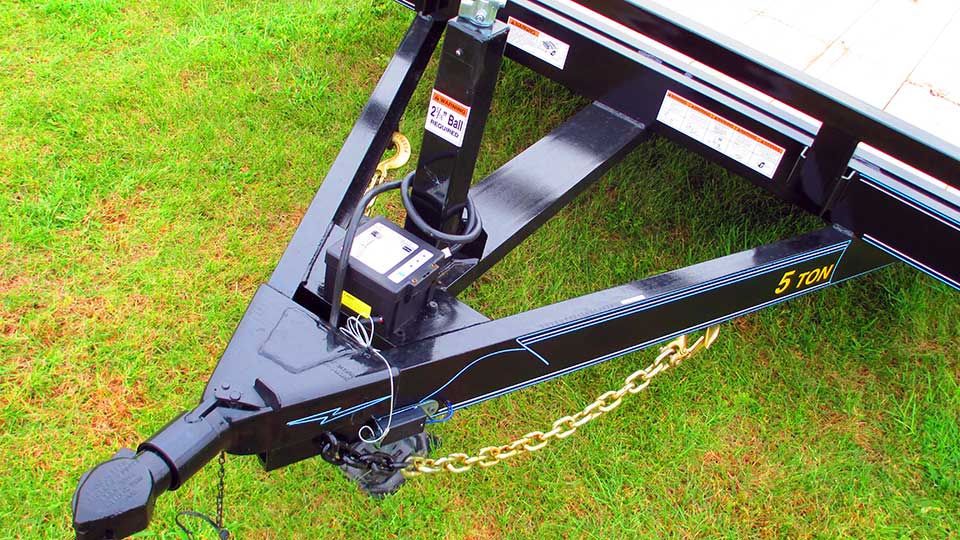

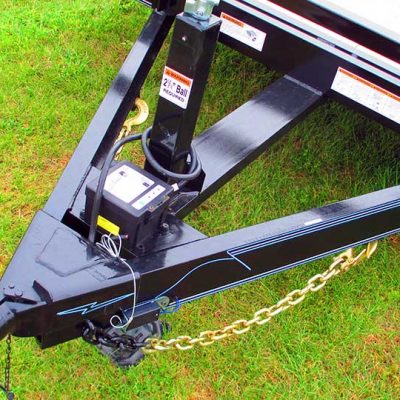

Hitch: 2 5/15″Bulldog H.D. w/safety chains

Jack: 7,000# dropleg jack

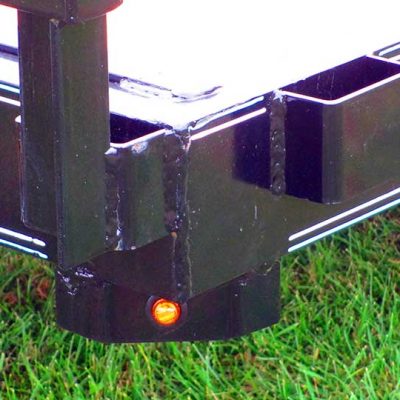

Structural: 5″ channel frame and tongue, 3″ channel crossmembers (16″ centers)

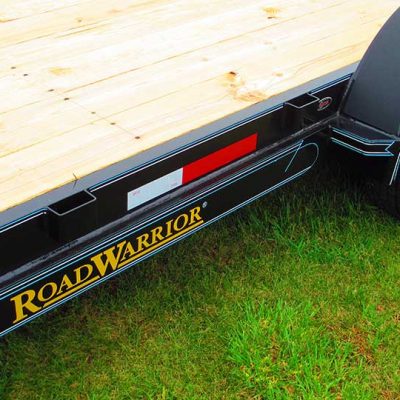

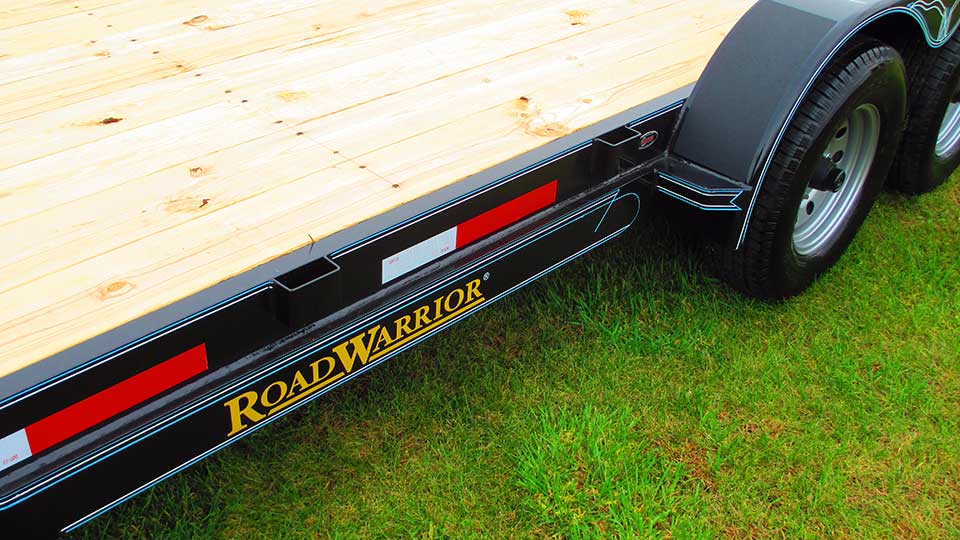

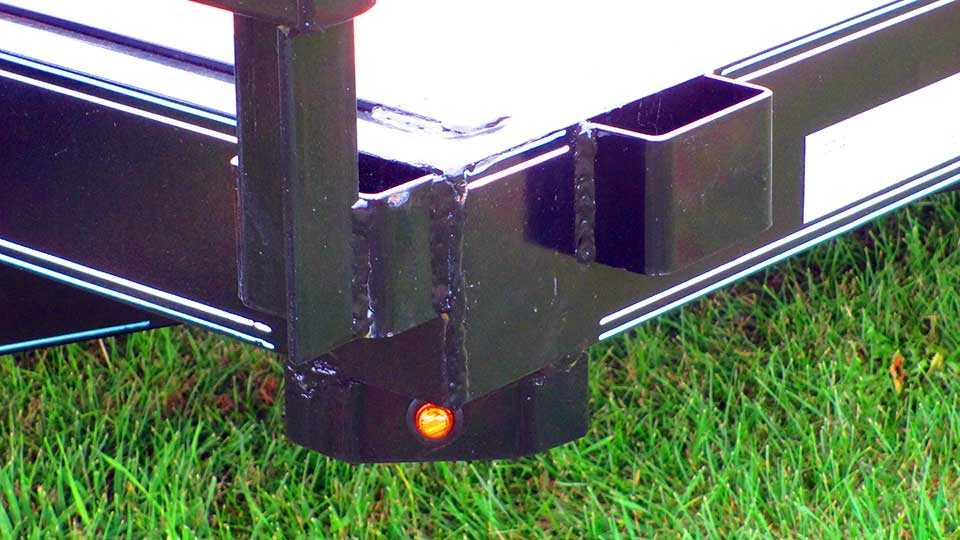

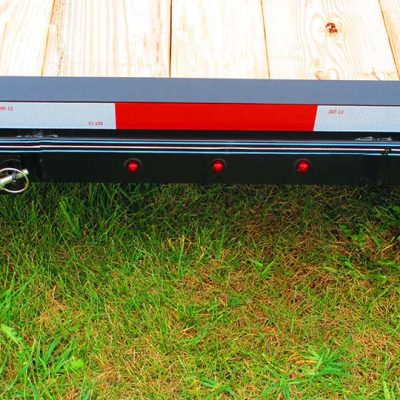

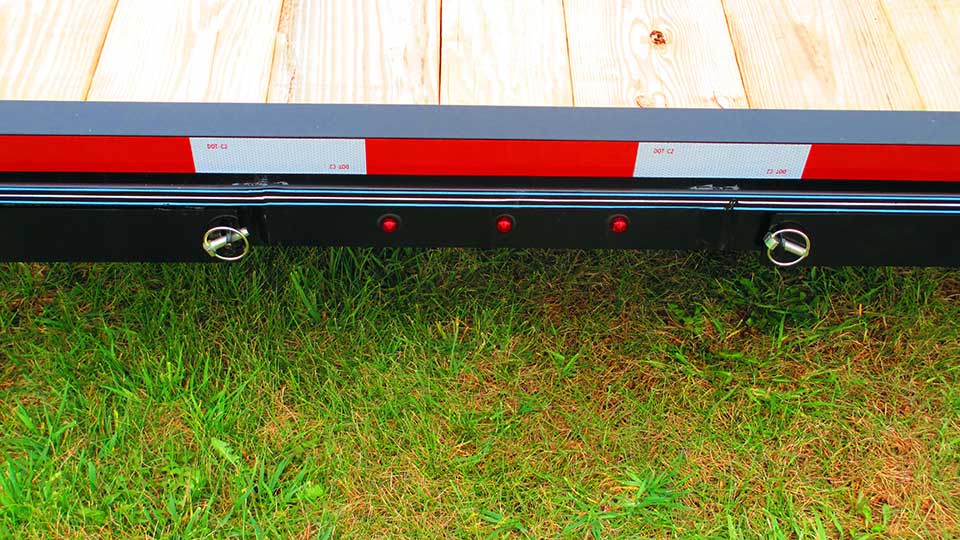

Tie Downs: 14 stake pockets, 2 X 2 tubing bump bar

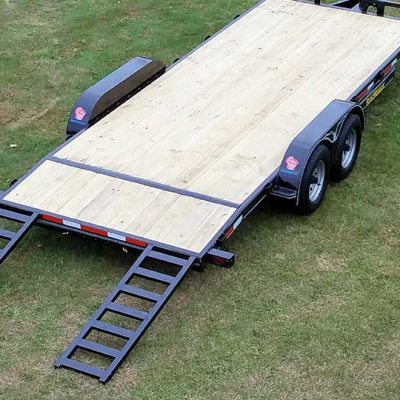

Ramps: 2X2 tubing (5’long X 18″ wide), slides in from rear

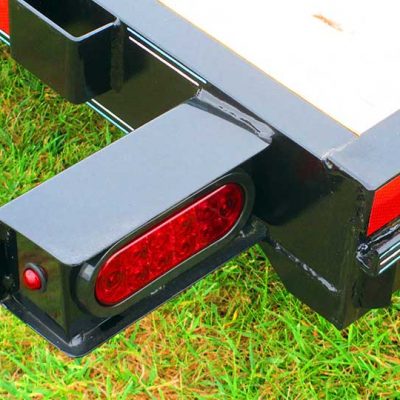

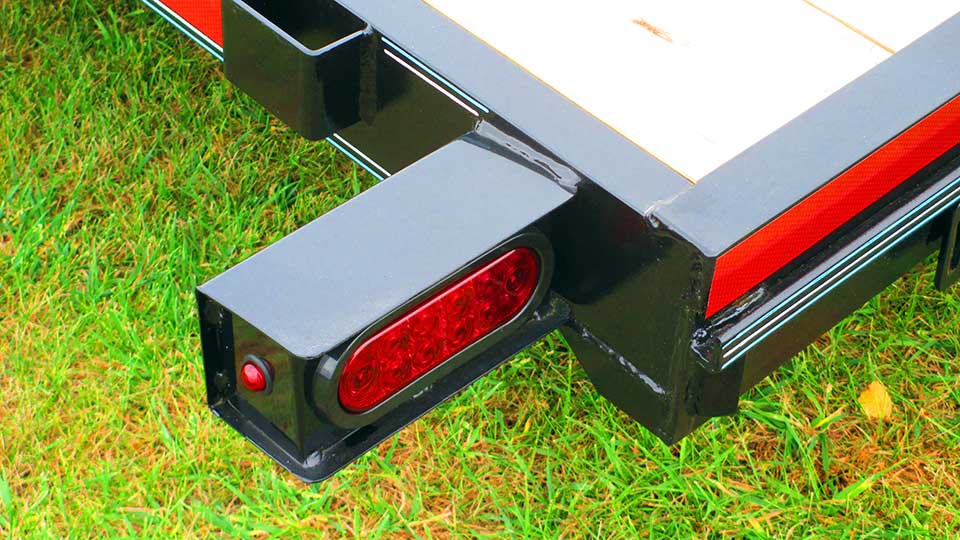

Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape

Floor: 2X8 treated yellow pine decking

Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish

Colors Available: Gloss Black, Victory Red, Charcoal, Bright Blue, Safety Orange, Safety Yellow, Federal Yellow

Note: Trailer length includes dove tail. (Example: 18′ trailer with dove tail has an 18′ bed including the dove tail.)

Bed Size & Prices

• 83″ X 16′: $4,870

• 83″ X 16′ w/dovetail: $4,940

• 83″ X 18′: $5,030

• 83″ X 18′ w/dovetail: $5,070

• 83″ X 20′ : $5,130

• 83″ X 20′ w/dovetail: $5,170

Some Options

• Spare ST 225/75 R15 LR “D” tire w/silver mod wheel: $190

• Spare silver mod wheel w/o tire: $60

• 1/8″ steel treadplate floor (in lieu of treated wood): $45/Lin. Foot

• 102″ wide package w/drive over fenders: $700 Click to view 102 package

• Adjustable pintle hitch (in lieu of standard): $50

• Ramp Extenders (for low clearance vehicles): $395 Click to view ramp extenders

• Stake pocket D-rings: $26 each for 6 or more. $32 each for less than 6. Click to view stake pocket D-rings
