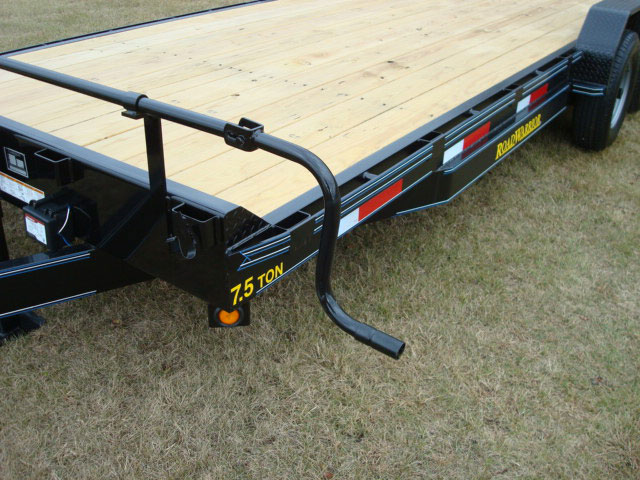

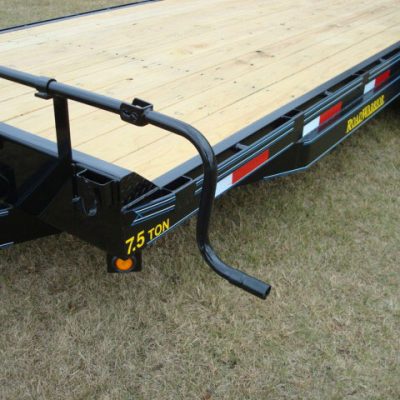

7.5 Ton Equipment Trailer

 Commercial and industrial quality. These trailers are built to take it.

Trailer may be shown with optional equipment.
Specifications – 7.5 Ton Equipment
Weight Rating: 15,000 LBS. GVWR w/evenly distributed load
Axles: 2 – 7,000# electric brakes, w/ez-lube, safety breakaway w/charger
Suspension: 6 leaf slipper springs
Tires & Wheels: ST235/80 R16 load range E radial tires, 8×6.5 bolt pattern silver mod wheels
Feature: Spare tire mount
Fenders: 9″x72″ 14 ga. treadplate fenders
Hitch: Adjustable 2 5/16″ ball or pintle (15,000# rated), H.D. safety chains
Jack: 12,000# dropleg
Structural: 7″ channel frame & 6″ Channel tongue, 3″ channel crossmembers (16″ centers)
Tie Downs 14 stake pockets, 5″ solid bump bar
Feature: Chain storage tray in tongue

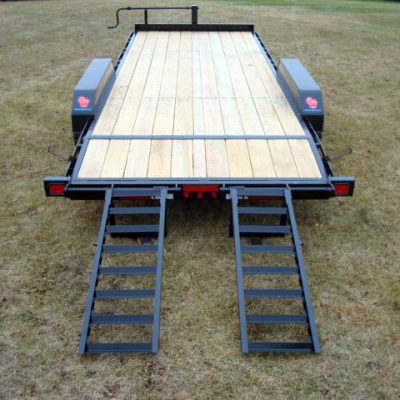

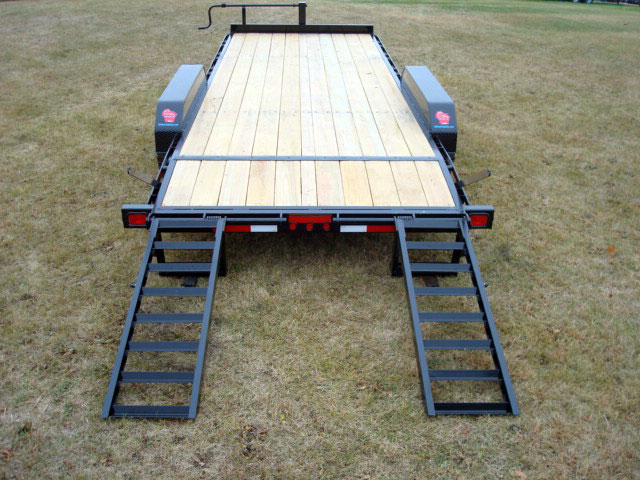

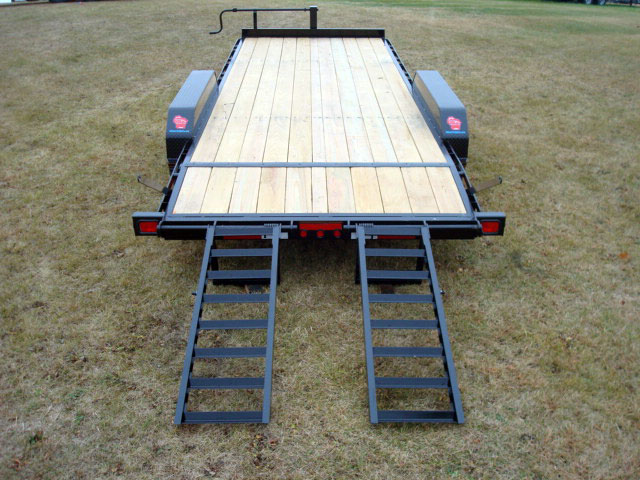

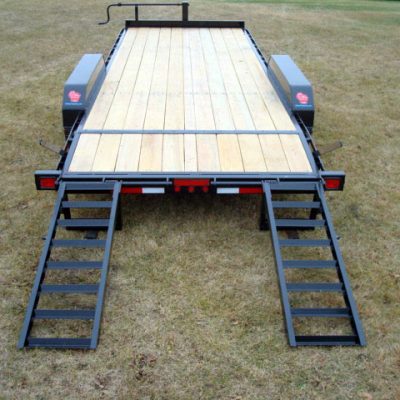

Ramps Spring assist stand up knee ramps, 5′ tall x 18″ wide
Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape
Floor: 2 X 8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Gloss Black, Victory Red, Charcoal, Bright Blue, Safety Orange, Safety Yellow, Federal Yellow

Note: Trailer length includes dove tail. (Example: 18′ trailer with dove tail has an 18′ bed including the dove tail.)

Bed Size & Prices

83″ X 16′ w/32″ dove tail & knee ramps: $5,870

83″ X 18′ w/32″ dove tail & knee ramps: $5,975

83″ X 20′ w/32″ dove tail & knee ramps: $6,180

83″ X 22′ w/32″ dove tail & knee ramps: $6,345

83″ X 24′ w/32″ dove tail & knee ramps: $6,450

 83″ x 22′ 7 ton tilt bed: Click to view 7 ton tilt bed equipment

printable-brochure-button-250px

Some Options

Spare ST 235/80 R16 LR “E” tire w/silver mod wheel: $210

Spare silver mod wheel w/o tire: $75

Rubrail w/pipespools: $160

 5′ slide in ramps w/storage pockets in rear : N/C

 2 5/16 ball coupler or pintle hitch: N/C

Gooseneck package: $1,450

 102″ wide package w/drive over fenders: Click to view 102″ package

 Tilt bed: Click to view 7 ton tilt bed equipment

Stake pocket D-rings: $26 each for 6 or more. $32 each for less than 6. Click to view stake pocket D-rings

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
