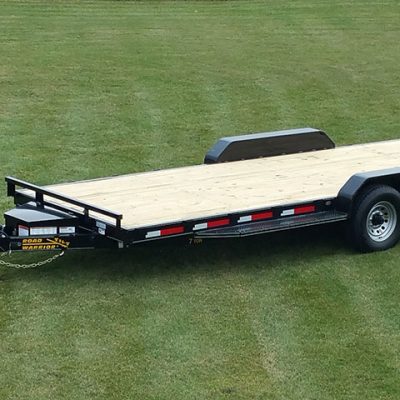

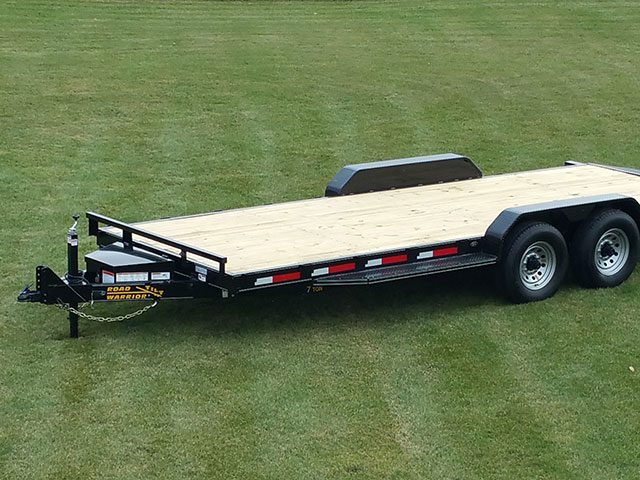

7 Ton Equipment Full Bed Tilt Trailer

Specifications – 7 Ton Equipment Full Bed Tilt Trailer

Weight Rating: 14,000 LBS. GVWR w/evenly distributed load

Axles: 2 – 7,000# electric brakes, w/ez-lube, safety breakaway w/charger

Suspension: 6 leaf slipper springs

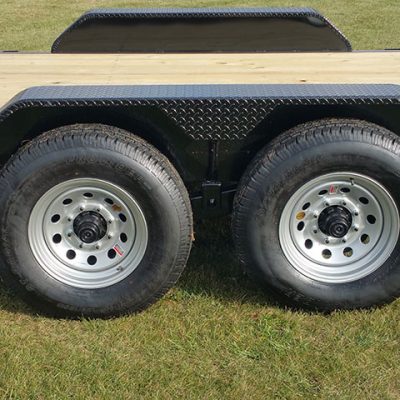

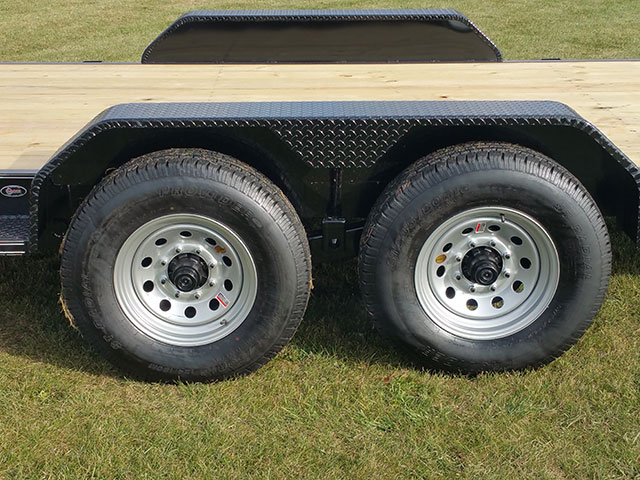

Tires & Wheels: ST235/80 R16 load range E radial tires, 8×6.5 bolt pattern silver mod wheels

Feature: Spare tire mount

Fenders: 9″x72″ 14 ga. treadplate teardrop w/stoneguard

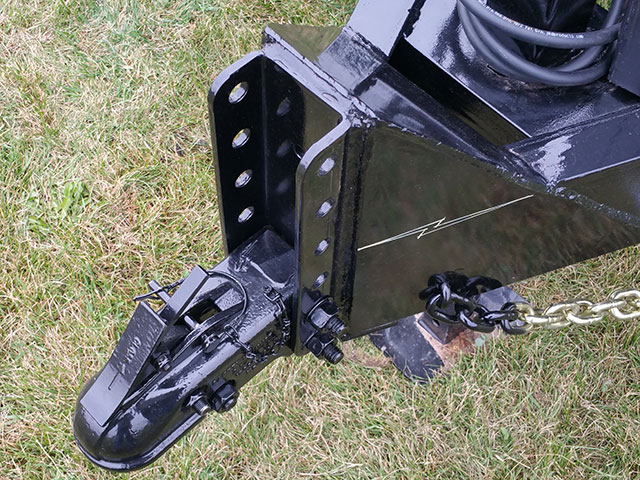

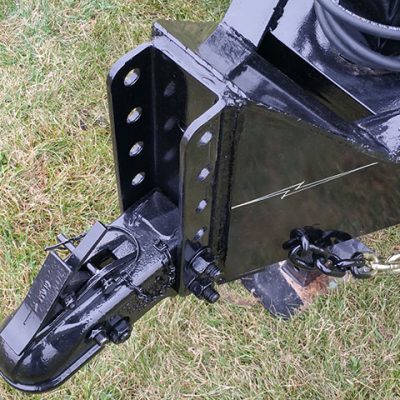

Hitch: Adjustable 2 5/16″ ball or pintle (14,000# rated), H.D. safety chains

Jack: 7,000# topwind, drop leg

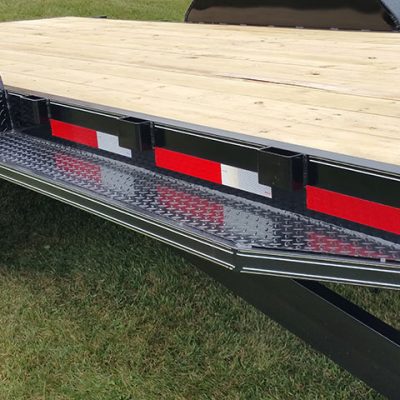

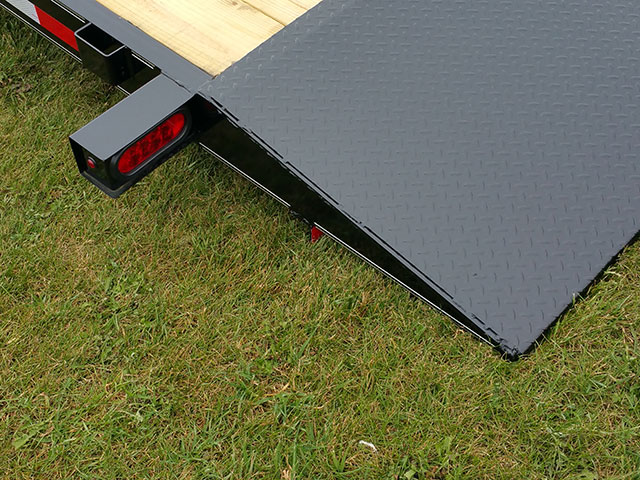

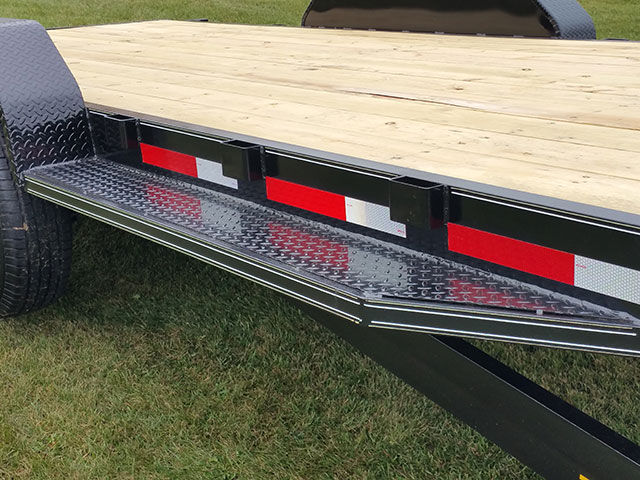

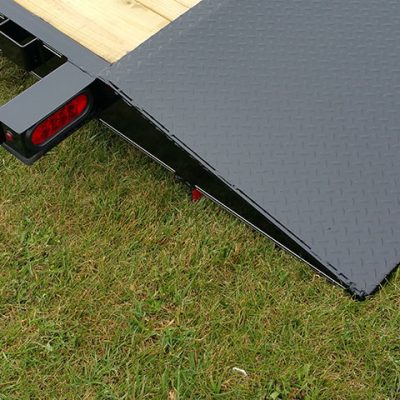

Structural: 6″ channel frame & tongue, 3″ channel crossmembers (16″ centers), special 1/8″ treadplate tail section & running board steps

Tie Downs 14 stake pockets

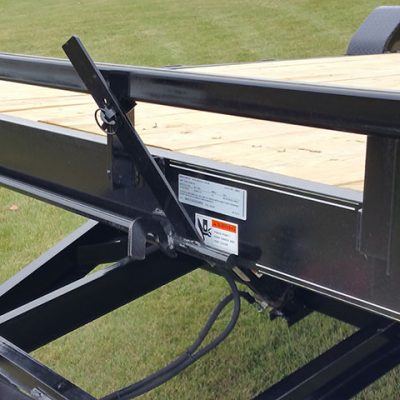

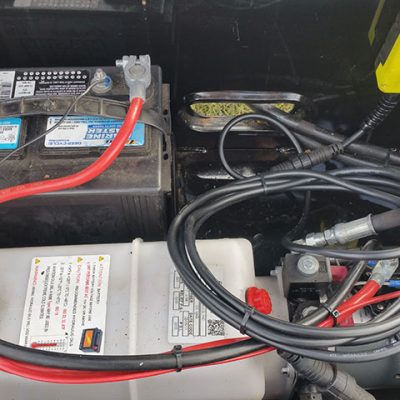

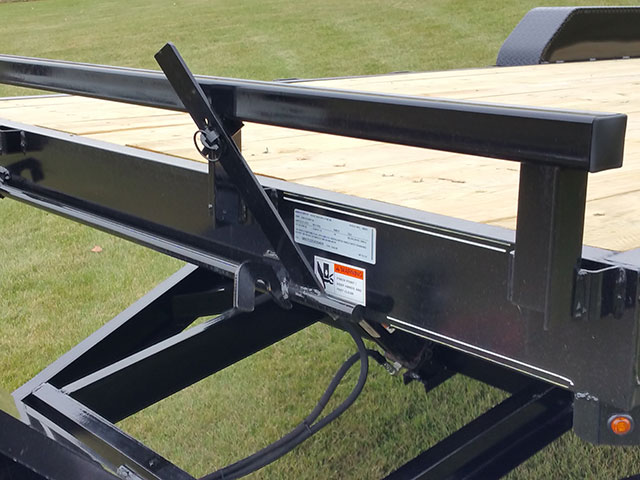

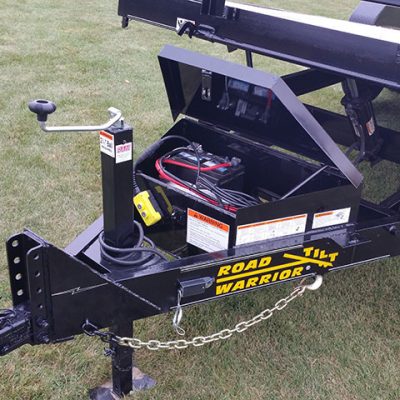

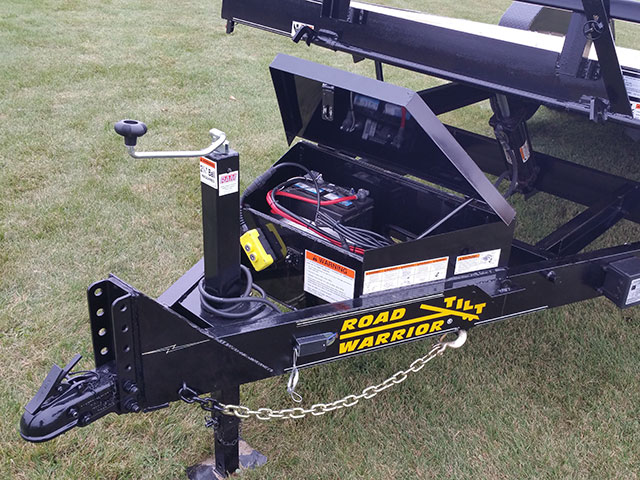

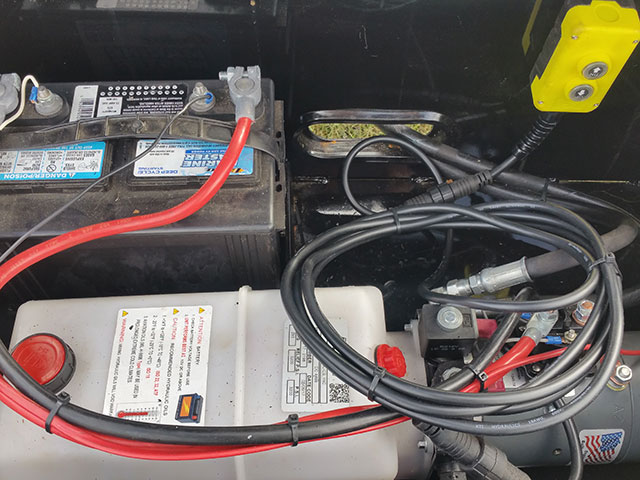

Tilt: 12 volt electric hydraulic lift (power up & power down) w/12 volt deep cycle battery and remote

Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape

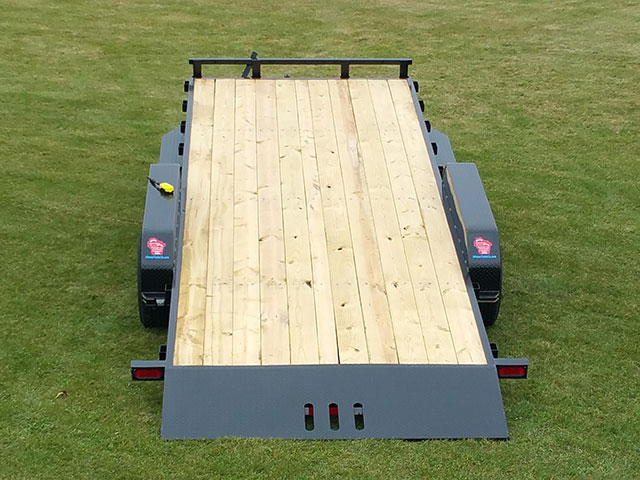

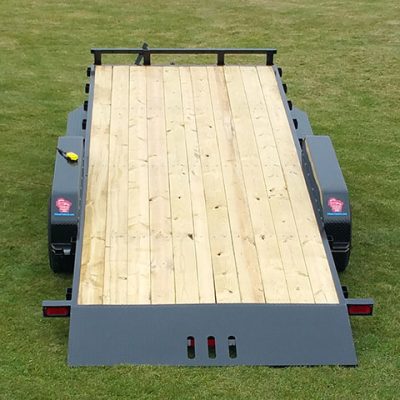

Floor: 2 X 8 treated yellow pine decking

Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish

Colors Available: Gloss Black, Victory Red, Charcoal, Bright Blue, Safety Orange, Safety Yellow, Federal Yellow



Bed Size & Prices

• 83″ X 20′: $7,635

• 83″ X 22″: $7,835

• 83″ X 24″: $8,035

• Click to view 3.5 ton tilt bed trailer

• Click to view 7 ton gravity tilt bed trailer

Some Options

• Now standard with LED lights

• Spare ST235/80 R16 LR E radial tire w/silver mod wheel: $210

• Spare silver mod wheel w/o tire: $75

• Adjustable 2 5/16 ball or pintle hitch: N/C

• 102″ wide package w/drive over fenders (through 20′ lengths): $700 Click to view 102 package

• For lengths longer than 20′: $700 plus $35 per linear foot of bed over 20′

• Ramp Extenders (for low clearance vehicles): $395 Click to view ramp extenders

• Stake pocket D-rings: $26 each for 6 or more. $32 each for less than 6. Click to view stake pocket D-rings
