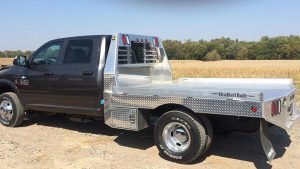

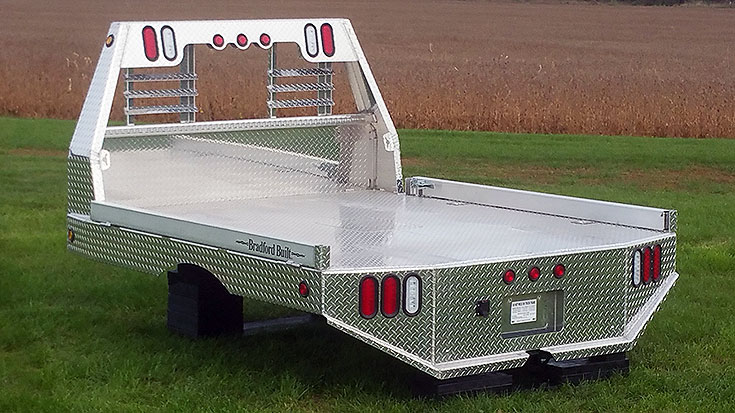

Aluminum Workbed
• Aluminum offers excellent corrosion resistance and an approximate 30% weight savings when compared to all steel. Great for trailer towing and general hauling. •
| Standard Features |

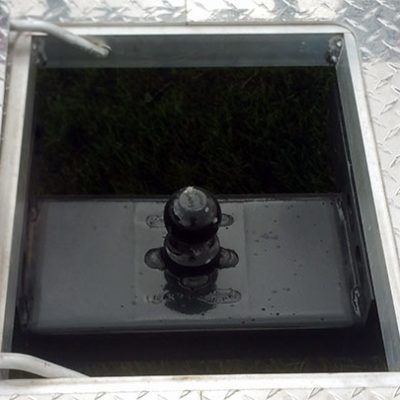

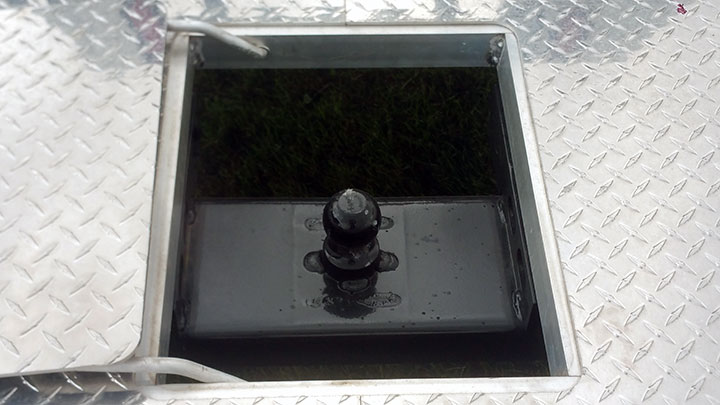

| Hitches: 30,000# gooseneck hitch and class IV receiver hitch |
| Structural: Steel welded subframe and hitch components. |
| Paint Process: Steel subframe goes through abrasive blasting cabinet, acid etching, zinc powdercoat primer and premium black powder coating process. Black is the only color available. |

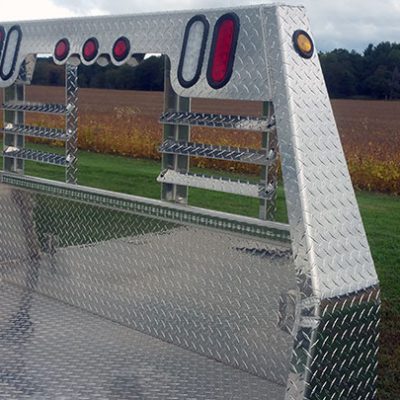

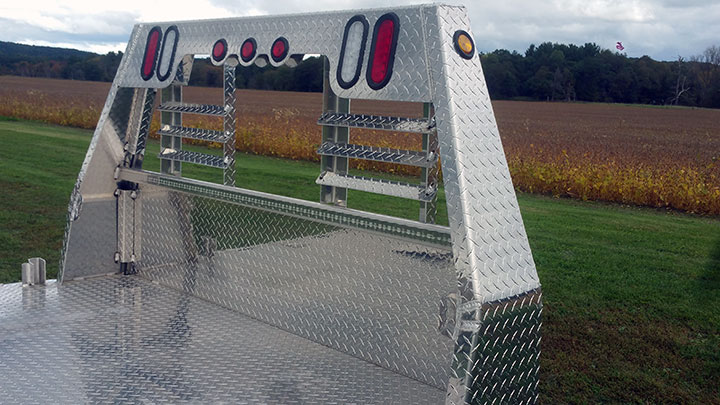

| Bed Construction: 3/16″ bright aluminum treadplate deck, skirting and formed headache rack. Aluminum channel crossmembers. |

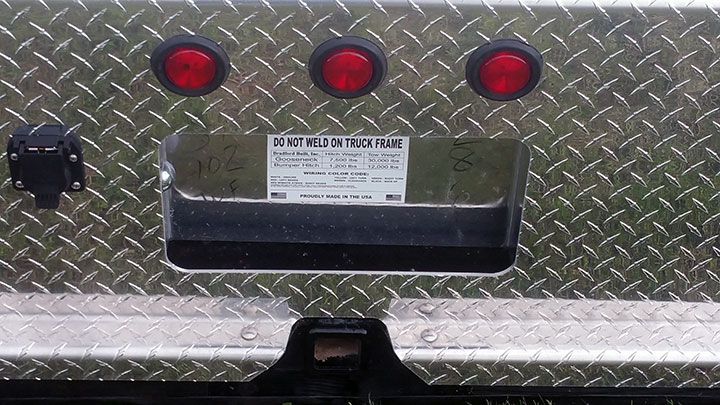

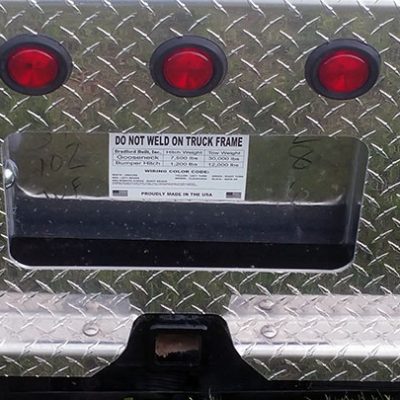

| Electrical: 6 LED stop, turn, tail lights. 4 LED backup lights and all required clearance lights. Sealed factory wiring harness. 7 way trailer connection. |

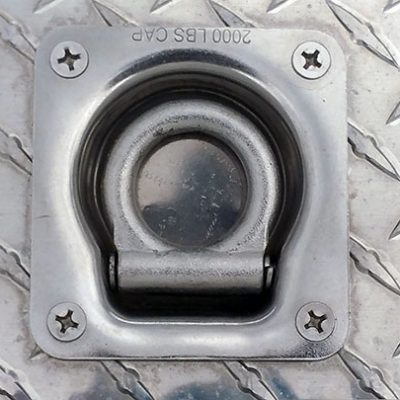

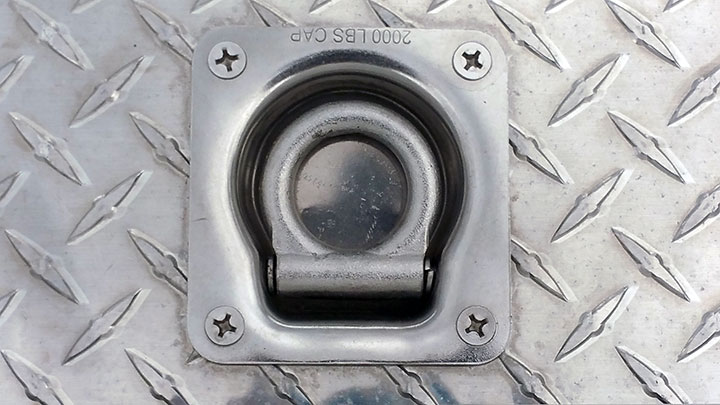

| Tie Downs: Stainless recessed d-rings in deck and stake pockets. |

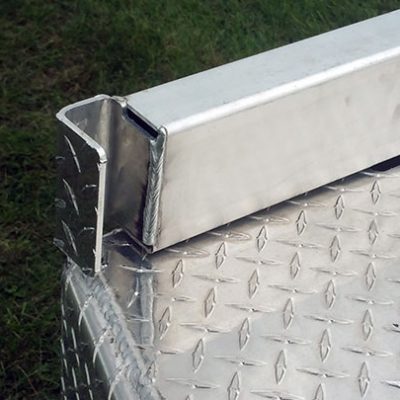

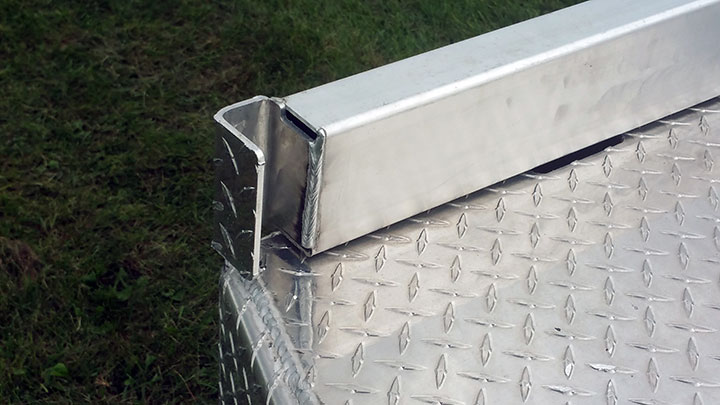

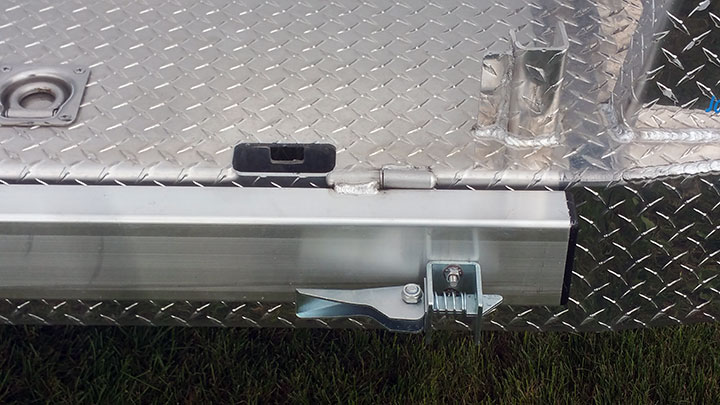

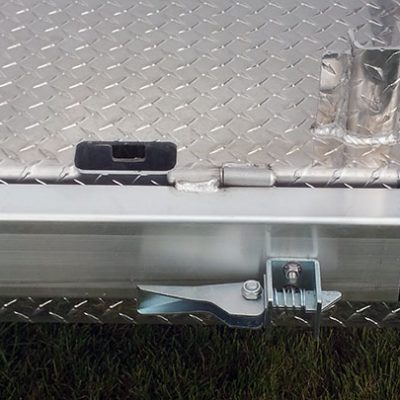

| Side Racks: 4″ flip down hinged side racks w/greasable hinges. Brackets for 2 X 4 lumber tailgate. |
| Special Features: Tapered rear corners and deep skirting on rear. |
| Fuel Filler: Stainless fuel bezel (Diesel w/DEF fluid requires second fuel bezel) |
| Mud Flaps: 19″ X 24″ rubber w/anti-spray grooves. |
| General Application List for Models Normally in Stock | |
| 7′ X 84 X 38/42 Length: 7′ Width: 84″ Frame Width: Specify 38″ or 42″ (For 38″ – 42″ Cab to Axle) |
Application:1/2 and 3/4 ton pickup, factory equipped with single rear wheels and short box. |
| 8 1/2′ X 84 X 38/42 Length: 8 1/2′ Width: 84 ” Frame Width: Specify 38″ or 42″ (For 56″ – 58″ Cab to Axle) |
Application: 1/2, 3/4 and 1 ton pickup, factory equipped with single rear wheels and 8′ pickup box. |
| 8 1/2′ X 96 X 38/42 Length: 8 1/2′ Width: 96″ Frame Width: Specify 38″ or 42″ (For 56″ – 58″ Cab to Axle) |
Application: 1 ton pickup factory equipped with rear dual wheels and 8′ dually pickup box. |
| 9′ 4″‘ X 96 X 34 Length: 9′ 4″ Width: 96″ Frame Width: 34″ (For 60″ Cab to Axle) |
Application: 1 ton cab and chassis truck with rear dual wheels and 60″ cab to axle measurement. |
To ensure choosing the proper size bed for your truck, the following information should be known:
1. Cab to axle measurement (measure from back of cab to center of rear axle)
2. Rear tires measurement (measure outside to outside width of rear tires)
3. Frame rails (measure outside to outside of frame rails at rear of truck)
4. Year, make and model of truck
Bradford Built Aluminum Workbed
Bed Size & Prices• Model: 7′ X 84 X 38/42: Price Reduced to $4,950 – was $5,200
• Model: 8 1/2′ X 84 X 38/42: Price Reduced to $4,950 – was $5,200
• Model: 8 1/2′ X 96 X 38/42: Price Reduced to $5,000 – was $5,250
• Model: 9′ 4″ X 96 X 34: $5,300
Note: All truck flatbeds are sold as components only. It is the responsibility of the final installer or manufacturer to meet all state, federal D.O.T. and O.S.H.A. regulations.
Some Options
• BB 84 Steel underbody tool box (fits 84″ wide beds, exc. short bed): $350
• BB 84 Aluminum underbody tool box (fits 84″ wide beds, exc. short bed): $375
• BB 96 Steel underbody tool box (fits 96″ wide beds): $350
• BB 96 Aluminum underbody tool box (fits 96″ wide beds): $375
Note: Tool boxes come with mounting hardware.
