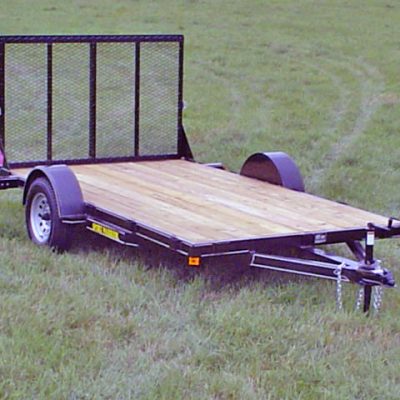

Single Axle Flatbed Utility Trailer

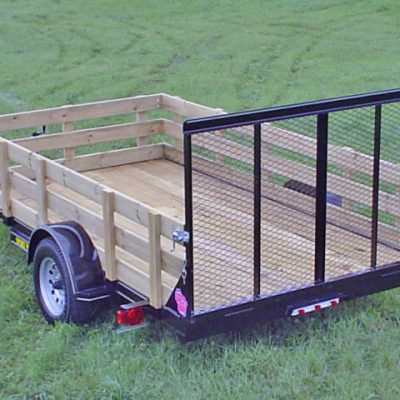

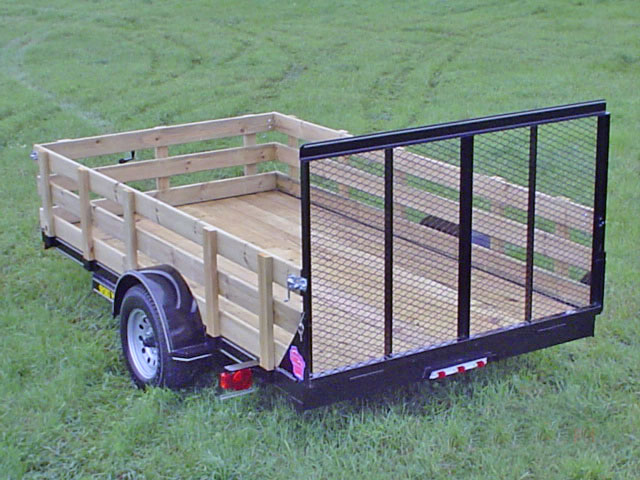

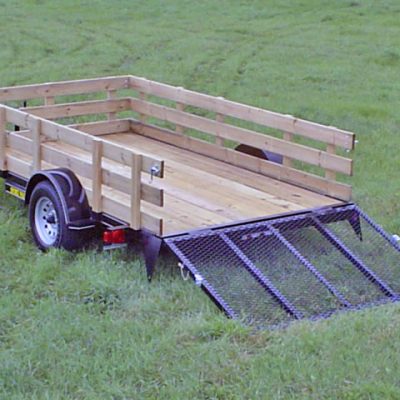

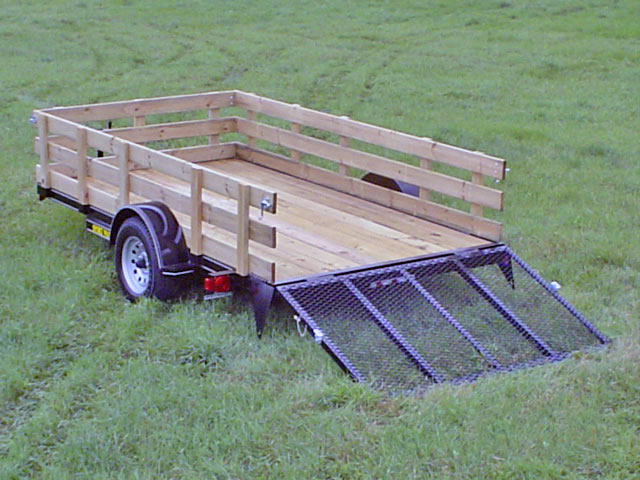

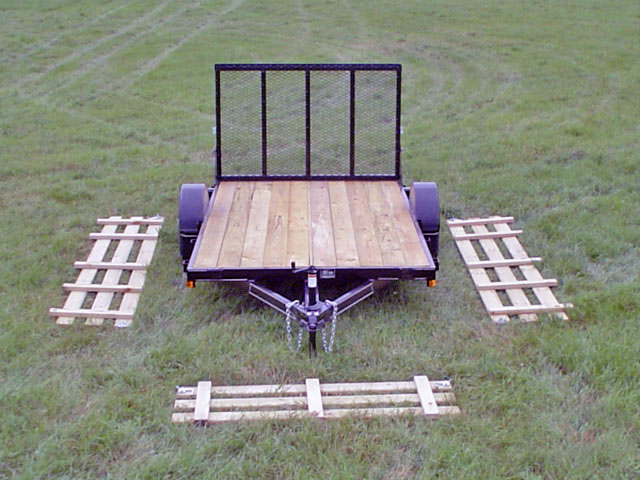

• Stake pocket feature allows you to build removable wood side racks, making this a very versatile trailer. •
Trailer may be shown with optional equipment.
| Specifications – Single Axle Flatbed Utility Trailer |
| Weight Rating: 2,990 LBS. GVWR w/evenly distributed load |
| Axle: 1- 3,500# w/ez-lube |
| Suspension: 4 leaf double eye springs |
| Tires & Wheels: ST 205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels |
| Fenders: 9″x32″ 16 ga. smooth w/stoneguard |
| Hitch: 2″ A-frame w/safety chains |
| Jack: 2,000# pipe mount swivel jack |
| Structural: 4″ channel frame & full wrapped tongue, 2 X 3 X 3/16 crossmembers (24″ centers) |
| Tie Downs: Multiple stake pockets (will fit wood 2 X 4) |
| Electrical: LED lighting, license bracket w/light, wiring in conduit w/flat 4 way connector |
| Floor: 2X8 treated yellow pine decking |
| Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish |
| Colors Available: Gloss Black, Victory Red, Charcoal, Bright Blue, Safety Orange, Safety Yellow, Federal Yellow |

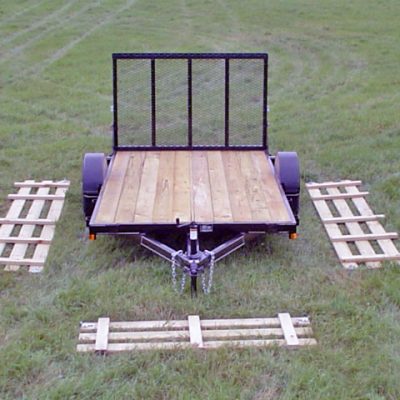

Note: Trailer is designed for wood side racks. (Side racks are not included)
Bed Size & Prices• 5′ X 8′ w/48″ ramp gate: $2,195
• 5′ X 10′ w/48″ ramp gate: $2,255
• 5′ X 14′ w/48″ ramp gate: $2,377
• 77″ X 10′ w/48″ ramp gate: $2,395
• 77″ X 12′ w/48″ ramp gate: $2,435
• 77″ X 14′ w/48″ ramp gate: $2,475
• 83″ X 12′ w/48″ ramp gate: $2,490
• 83″ X 14′ w/48″ ramp gate: $2,540
Some Options
• Spare ST 205/75 R15 LR “C” tire w/silver mod wheel: $150
• Spare silver mod wheel w/o tire: $60

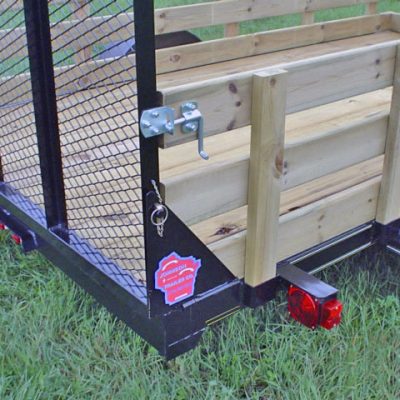

• Security Latches: $12 each (2 straight and 2 corners required for wood side racks)

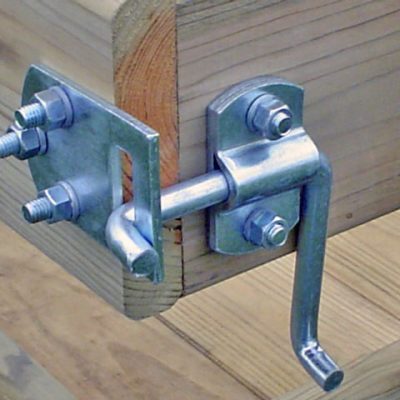

Corner Safety Latch
