Steel 4 Box Utility Bed
• A very good looking and usable truck bed. Four built in tool boxes and side skirting. •
• Great for trailer towing and general hauling. •
| Standard Features |
| Hitches: 30,000# gooseneck hitch and class IV receiver hitch |

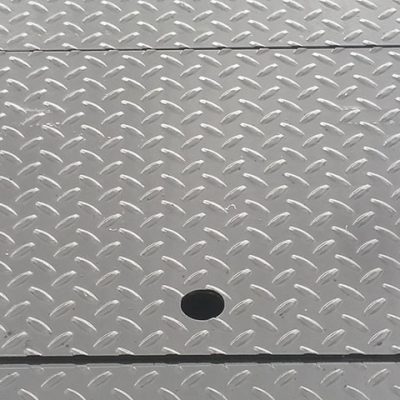

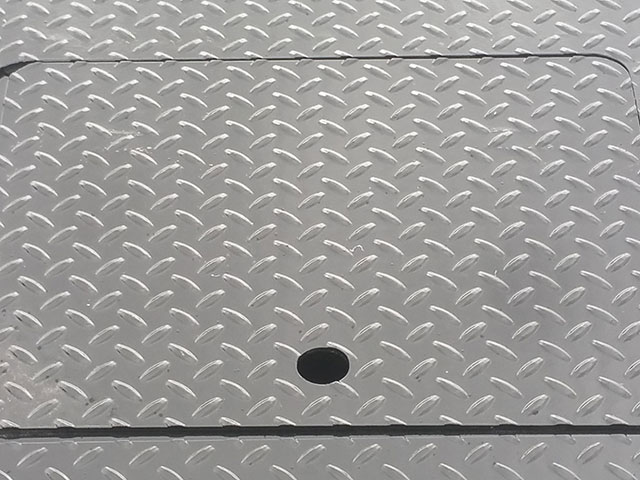

| Structural: Structural steel channel runners, crossmembers and hitch components. 1/8″ tread plate steel deck, skirting and headache rack. |
| Paint Process: Entire assembly goes through abrasive blasting cabinet, acid etching, zinc powdercoat primer and premium black powder coating process. Black is the only color available. |
| Side Skirting: Full side skirts w/fender wells. |

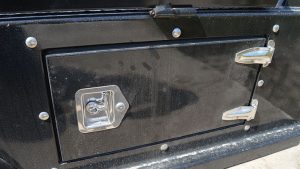

| Tool Boxes: 4 built-in tool boxes (in front and behind wheels on each side.) |

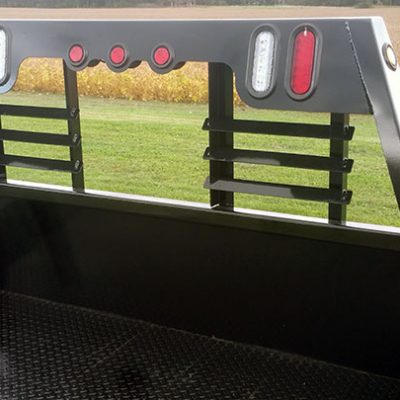

| Electrical: 6 LED stop, turn, tail lights. 4 LED backup lights and all required clearance lights. |
| Tie Downs: Recessed d-rings and stake pockets. |

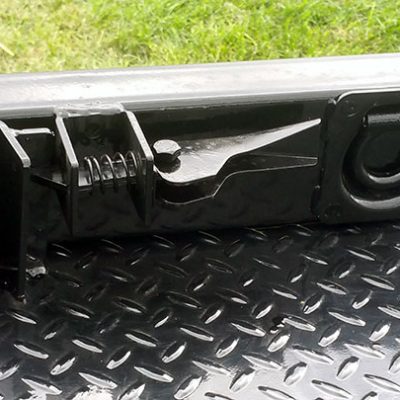

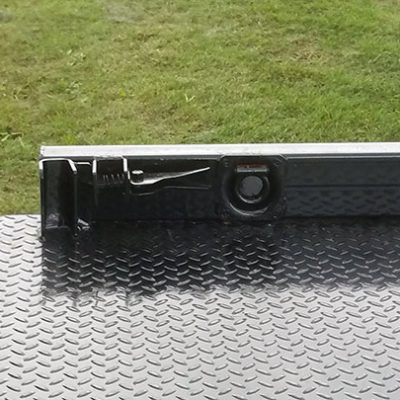

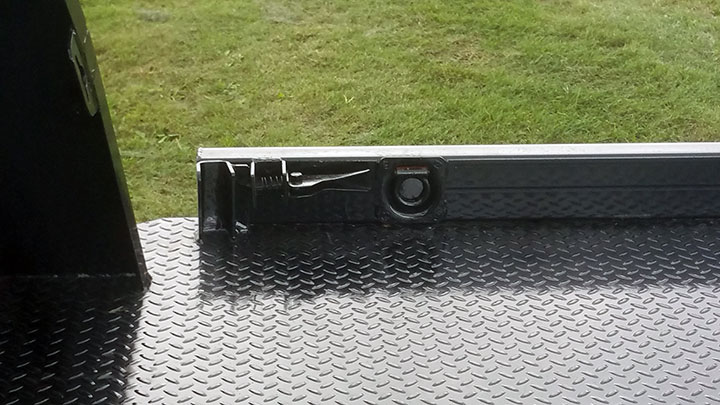

| Side Racks: 4″ flip down hinged side racks w/greasable hinges. Brackets for 2 X 4 lumber tail gate. |
| Special Features: Tapered rear corners and deep skirting on rear. |
| Fuel Filler: Black steel fuel bezel (Diesel w/DEF fluid requires second fuel bezel) |
| Mud Flaps: 19″ X 24″ rubber w/anti-spray grooves. |
| General Application List for Models Normally in Stock | |
| 8 1/2′ X 84 X 38/42 Length: 8 1/2′ Width: 84 ” Frame Width: Specify 38″ or 42″ (For 56″ – 58″ Cab to Axle) |
Application: 1/2, 3/4 and 1 ton pickup, factory equipped with single rear wheels and 8′ pickup box. |
| 8 1/2′ X 96 X 38/42 Length: 8 1/2′ Width: 96″ Frame Width: Specify 38″ or 42″ (For 56″ – 58″ Cab to Axle) |
Application: 1 ton pickup factory equipped with rear dual wheels and 8′ dually pickup box. |
| 9′ 4″ X 96 X 34 Length: 9′ 4″ Width: 96″ (For 60″ Cab to Axle) |
Application: 1 ton cab and chassis truck with rear dual wheels and 60″ cab to axle measurement. |
To ensure choosing the proper size bed for your truck, the following information should be known:
1. Cab to axle measurement (measure from back of cab to center of rear axle)
2. Rear tires measurement (measure outside to outside width of rear tires)
3. Frame rails (measure outside to outside of frame rails at rear of truck)
4. Year, make and model of truck

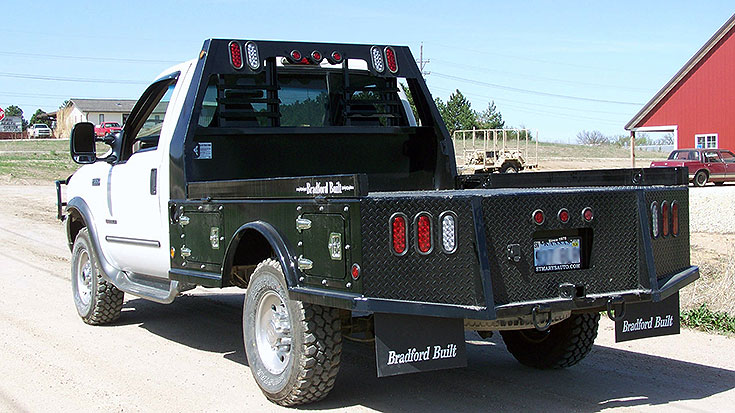

Bradford Built Steel 4 Box Bed
Bed Size & Prices• Model: 8 1/2′ X 84 X 38/42: Priced Reduced to $5,510 – was $5,785
• Model: 8 1/2′ X 96 X 38/42: Priced Reduced to $5,510 – was $5,785
• Model: 9′ 4″ X 96 X 34: Priced Reduced to $5,510 – was $5,785
Note: All truck flatbeds are sold as components only. It is the responsibility of the final installer or manufacturer to meet all state, federal D.O.T. and O.S.H.A. regulations.
