Steel Mustang Truck Bed
• Rugged steel construction. Great for trailer towing and general hauling •
• An inexpensive choice for a pickup box replacement. •
| Standard Features |
| Hitches: 30,000# gooseneck hitch and class IV receiver hitch |

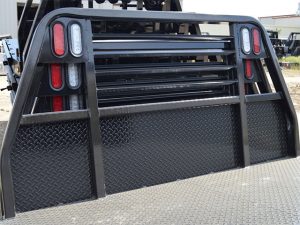

| Structural: Structural steel channel runners, crossmembers and hitch components. 1/8″ tread plate deck and skirting. Formed steel tube headache rack w/vertical tube supports welded to long runners. (Headache rack designed w/no gussets for maximum usable deck space.) |
| Paint Process: Entire assembly goes through abrasive blasting cabinet, acid etching, zinc powdercoat primer and premium black powder coating process. Black is the only color available. |
| Electrical: 6 LED stop, turn, tail lights. 4 LED backup lights and all required clearance lights. Sealed factory wiring harness. 7 way trailer connection. |
| Tie Downs: Stake pockets. |
| Special Features: Tapered rear corners and deep skirting on rear. |
| Fuel Filler: Black steel fuel bezel (Diesel w/DEF fluid requires second fuel bezel) |
| Mud Flaps: 19″ X 24″ rubber w/anti-spray grooves. |
| General Application List for Models Normally in Stock | |
| 7′ X 84 X 38/42 Length: 7′ Width: 84″ Frame Width: Specify 38″ or 42″ (For 38″ – 42″ Cab to Axle) |
Application:1/2 and 3/4 ton pickup, factory equipped with single rear wheels and short box. |
| 8 1/2′ X 84 X 38/42 Length: 8 1/2′ Width: 84 ” Frame Width: Specify 38″ or 42″ (For 56″ – 58″ Cab to Axle) |
Application: 1/2, 3/4 and 1 ton pickup, factory equipped with single rear wheels and 8′ pickup box. |
| 8 1/2′ X 96 X 38/42 Length: 8 1/2′ Width: 96″ Frame Width: Specify 38″ or 42″ (For 56″ – 58″ Cab to Axle) |
Application: 1 ton pickup factory equipped with rear dual wheels and 8′ dually pickup box. |
To ensure choosing the proper size bed for your truck, the following information should be known:
1. Cab to axle measurement (measure from back of cab to center of rear axle)
2. Rear tires measurement (measure outside to outside width of rear tires)
3. Frame rails (measure outside to outside of frame rails at rear of truck)
4. Year, make and model of truck

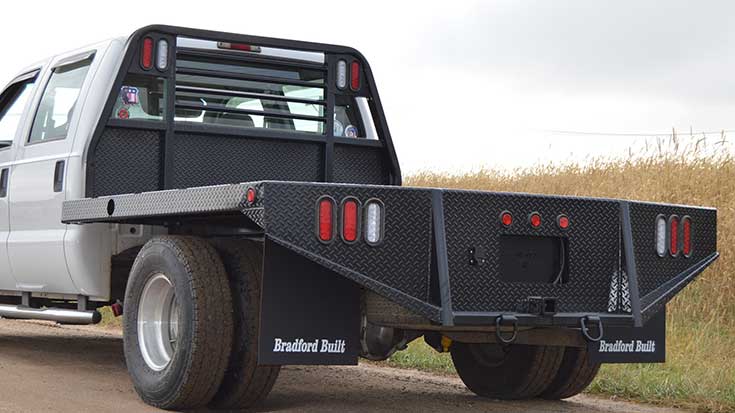

Bradford Built Mustang Bed
Bed Size & Prices• Model: 7′ X 84 X 38/42: Price Reduced to $3,350 – was $3,625
• Model: 8 1/2′ X 84 X 38/42: Price Reduced to $3,350 – was $3,625
• Model: 8 1/2′ X 96 X 38/42: Price Reduced to $3,450 – was $3,725
Note: All truck flatbeds are sold as components only. It is the responsibility of the final installer or manufacturer to meet all state, federal D.O.T. and O.S.H.A. regulations.
Some Options
• BB 84 Steel underbody tool box (Fits 84″ wide beds, exc. short bed): $350
• BB 84 Aluminum underbody tool box (Fits 84″ wide beds, exc. short bed): $375
• BB 96 Steel underbody tool box (Fits 96″ wide beds): $350
• BB 96 Aluminum underbody tool box (Fits 96″ wide beds): $375
Note: Tool boxes come with mounting hardware.
